Q-BOX-17A

Model : Q-BOX-17A

Description :
◆Onboard Baytrail-I/D/M series CPU;
◆Integrated 2GB/4GB DDR3 memory;
◆Without cable in the case，with CU64IO pinch plate,extend to 6*COM ports/4USB;
◆With HDD interface;
◆Fanless；Wide voltage（Optional）;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆Onboard Baytrail-I/D/M series CPU;

◆Integrated 2GB/4GB DDR3 memory;

◆Without cable in the case，with CU64IO pinch plate,extend to 6*COM ports/4USB;

◆With HDD interface;

◆Fanless；Wide voltage（Optional）;

SPECIFICATION

Case	Name	Q-BOX-17A
	Colour	Black
	Size	214.520052
	Material	6063
Motherboard ? ? ? ?	Chipset	Intel?single chipset
	CPU	Onboard Baytrail-I/D/M?series?CPU
	Memory	Onboard DDRⅢ 2GB/4GB?memory(With 1* RAM slot to max. 8Gb RAM）
	Graphics	Integrated Intel HD Graphics
	Audio	Integrated Realtek ALC662 HD
	Expansion slot	2*MINI-PCIE?socket，can add wifi、3G?module
	Expansion slot	1*MINI-SATA?socket，can add SSD
Memory	HDD	2.5inch HDD
Memory	SSD	SSD
Function	Display Outputs	HDMI、VGA
	Network Outputs	1*Realtek 81111 EL(千兆網卡)
	COM	5RS232、1RS422/485
	USB	7USB2.0、1USB3.0

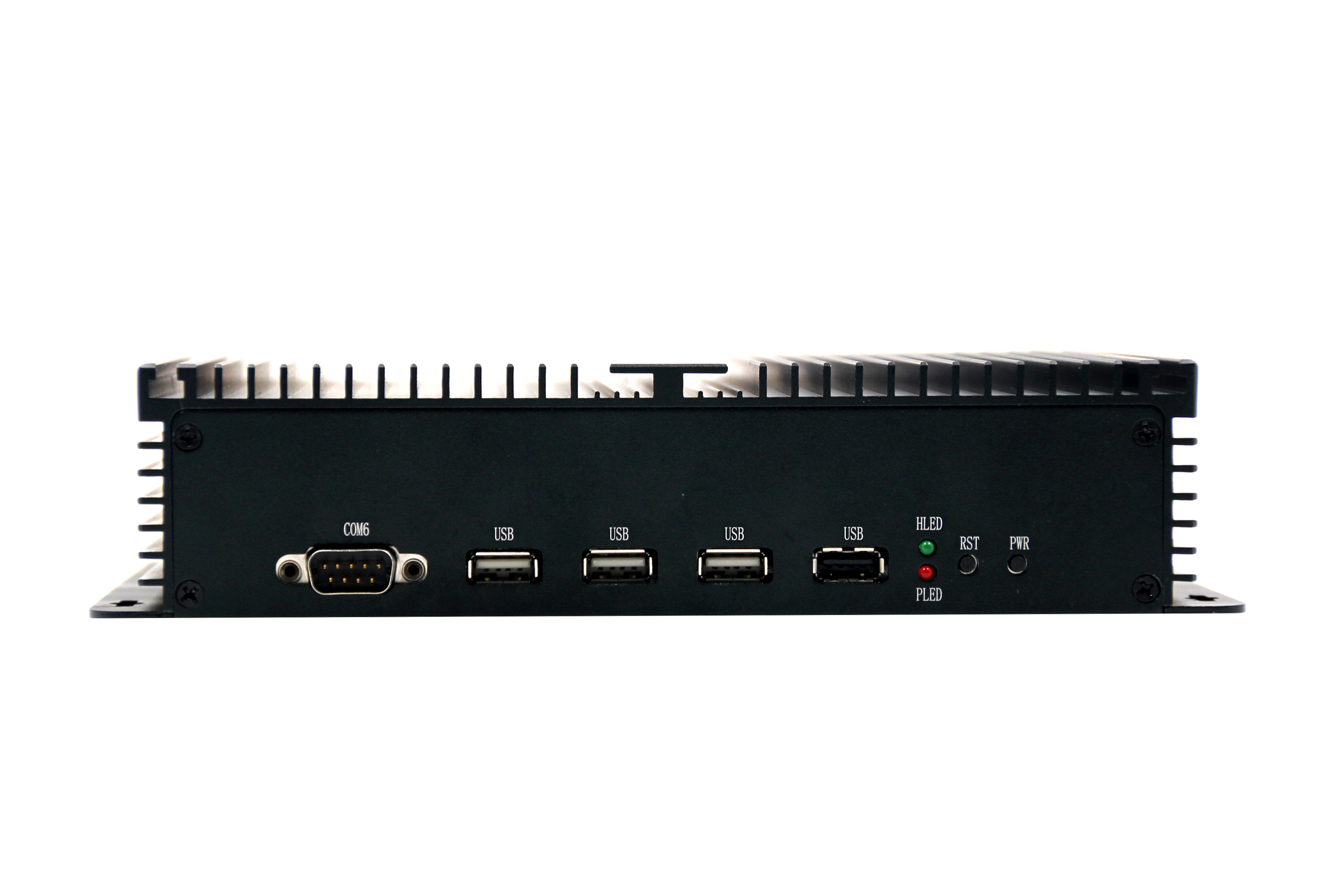

	Front I/O?ports	1Power Switch、 1Reset Switch、 1HDD&Power indicator?light、 1COM、 4*USB
	Rear I/O?ports	5COM(COM3 for RS422/485)、 4USB、 1LAN、 1MIC、 1AUDIO DC-12V、 1VGA、 1*HDMI
	Working temperature	-20~60℃
	Operating System	Windows7、Windows8、Windows8.1、Windows10、linux
Features	?Light and Compact Embedded system design,Support Intel?Baytrail-D/I/M?series processor； ?????Onboard DDRⅢ 2GB/4GB?memory，Fanless/Noiselessness?Design,High Stability; ?????Mini-PCIE?socket，support wifi?module，SIM?Card socket，Support 3G?module； ?Rich I/O?ports，include 8USB?ports、6COM?ports、1VGA、1HDMI ?12V DC Design(can choose wide voltage version），Simple power supply
Power Supply	Default 12V DC Single input DC power supply(power-on automatic startup?from Hardware，can choose wide voltage version)

Size

Order information

CPU

Quad core?J1900;N2900

Or Dual core J1800;N2800；Mostly Inventory is J1900

Memory

Onboard 2G or 4G,maximum up to 8GB

Hard Disk

M-SATA?or HDD SATA
