Q-BOX-E2

Model : Q-BOX-E2

Description :
◆ Intel Apollo lake serial Processor;
◆ onboard 2G\\4G memory;
◆ 5*RS-232，1*RS-485/RS-422;
◆ onboard 32/64/128G SSD storage（optional）;
◆ wide votage 8-36V Power supply;
◆ size: 209.4*122.5*70.6mm;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Intel Apollo lake serial Processor;

◆ onboard 2G\4G memory;

◆ 5*RS-232，1*RS-485/RS-422;

◆ onboard 32/64/128G SSD storage（optional）;;

◆ wide votage 8-36V Power supply

◆ size: 209.4*122.5*70.6mm

Specification

Model	Q-BOX-E2
size	209.4122.570.6mm
Processor	Intel Apollo lake?serial N3450/N4200/E3940/N3550 processor ;
Chipset	Intel Apollo lakel single chipset
Ram socket	Onboard 2G\4G?memory，can add one Ram socket , max to be 8GB Ram
Lan Port	Onboard 1 Gigabit LAN
Audio	onboard?HDA ALC662
Storage	1SATA3.0 1onboard SSD ?1*Mini-SATA?(onboard SSD or Mini-SATA for alternative）
Color	Sliver

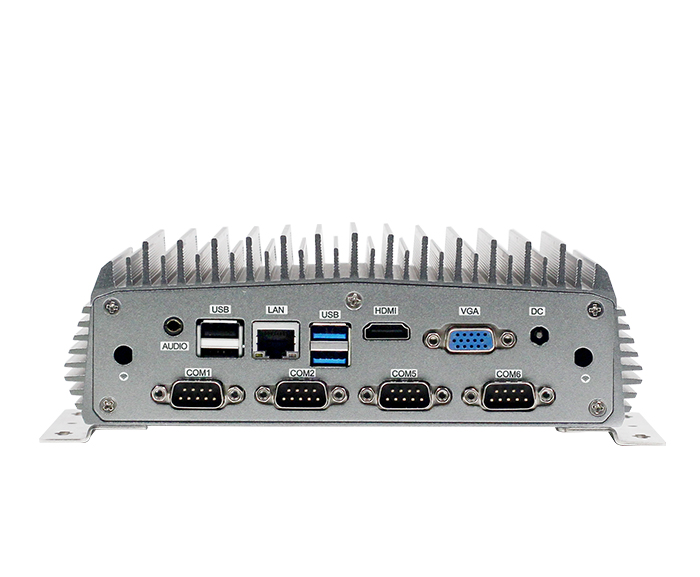

Rear panel interface	1LAN ?1HDMI ?1VGA ?4COM(RS232) 4USB2.0?2USB3.0?1DC ?1LINE-OUT?2*WIFI?antenna interface

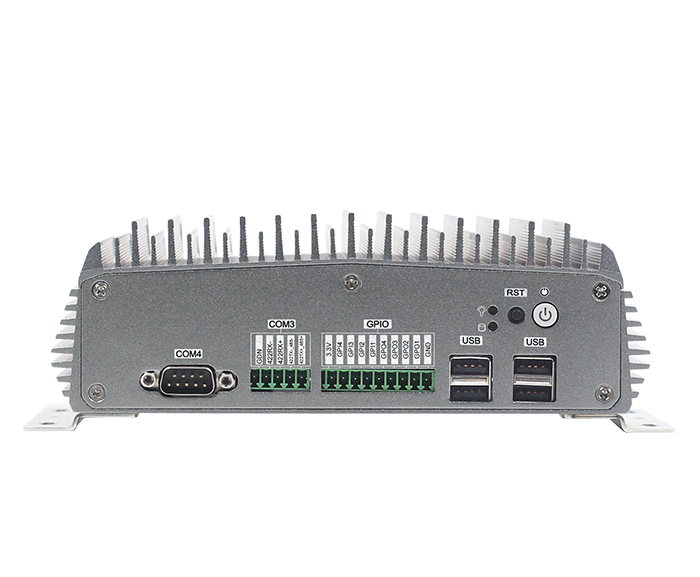

Front panel interface	1* fast switch button 1* power indicator 1* hard disk indicator 4USB2.0 1COM(RS2320 1COM(RS422/485Phoenix terminal interface ) 1GPIO
Support System	Windows10 Linux（E3940 CPU can support Android OS ）

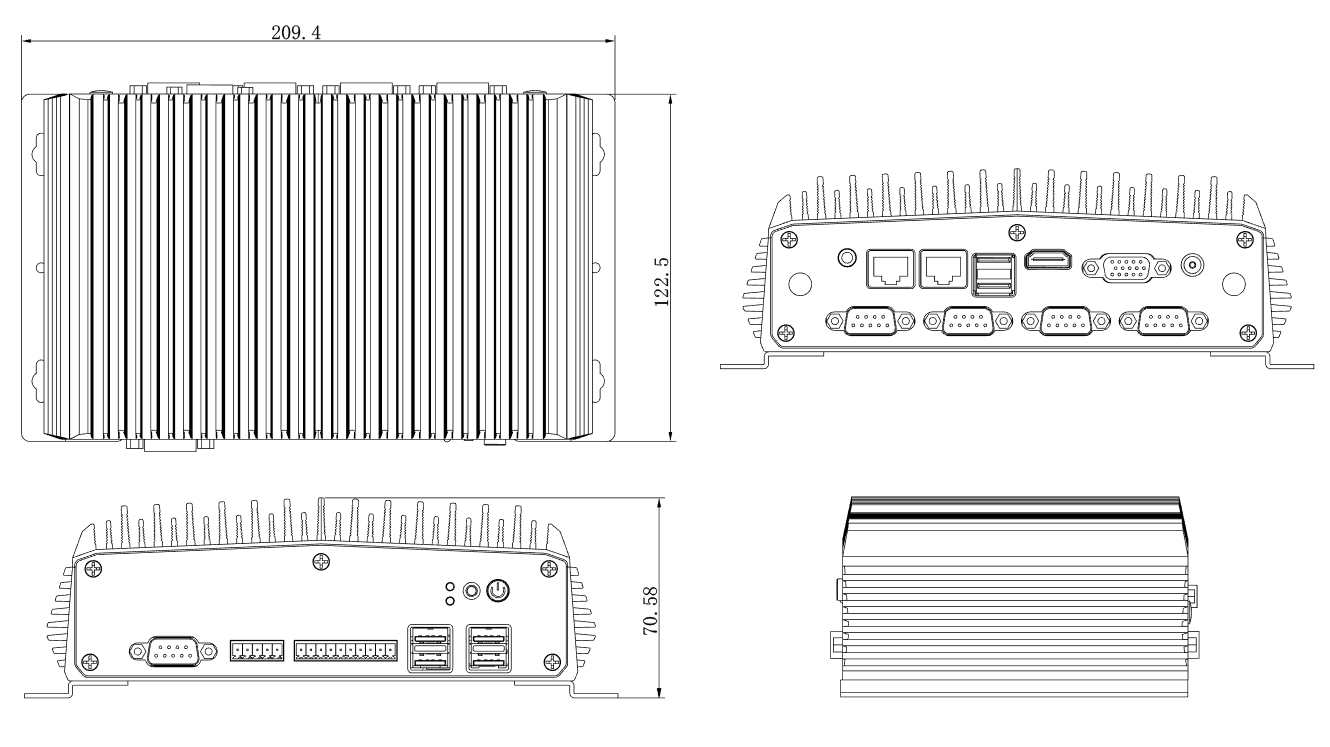

Size

Order information

Motherboard Model

description

CPU optional

?

AP42Z3A

Support Intel ?Apollo lakel serial Processor

N4200 quad core?1.1GHz up to 2.5GHz

N3450?quad core 1.1GHz up to 2.2GHz

E3940?quad core 1.1GHz up to 1.8GHz
