Q-BOX-H1

Model : Q-BOX-H1

Description :
◆ Support Intel Mobile 4th Haswell-M i3-i5-i7 CPU;
◆ QM87/HM86/HM87 Chipset;
◆ 1*VGA,1*HDMI，1*DP，2*USB3.0，4*USB2.0 5*RS232，1*RS/422/RS485;
◆ Support power-on automatic boot-up function, jumper selection;
◆ Support8-36V；
◆ Size:273.4*160*99.2mm ；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Support Intel Mobile 4th Haswell-M i3-i5-i7 CPU;

◆ QM87/HM86/HM87 Chipset;

◆ 1*VGA,1*HDMI，1*DP，2*USB3.0，4*USB2.0 5*RS232，1*RS/422/RS485;

◆ Support power-on automatic boot-up function, jumper selection;

◆ Support8-36V；

◆ Size:273.4*160*99.2mm ；

Specification

Model	Q-BOX-H1
Size	273.416099.2mm
Processer	Support?Intel?Mobile?4th?Haswell-M?i3-i5-i7?CPU
Chipset	QM87/HM86/HM87
RAM?slot	On?board2GB/4GB?DDR3L?RAM，can?added?1x?RAM?slot?,max.?12GB?RAM(Optional)
Network	Onboard?2*Intel?I211?1000M?LAN
Audio	Onboard?HDA?ALC662
Storage	1SATA3.0?1SATA_HDD?1*Mini-SATA
Color	silver

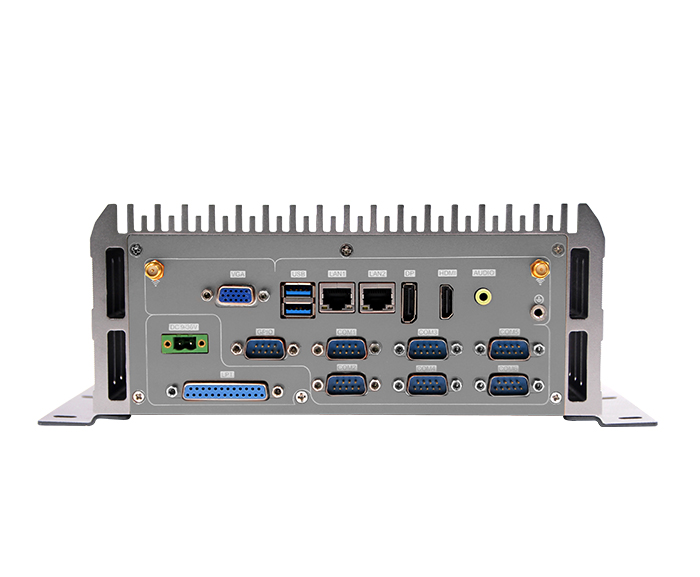

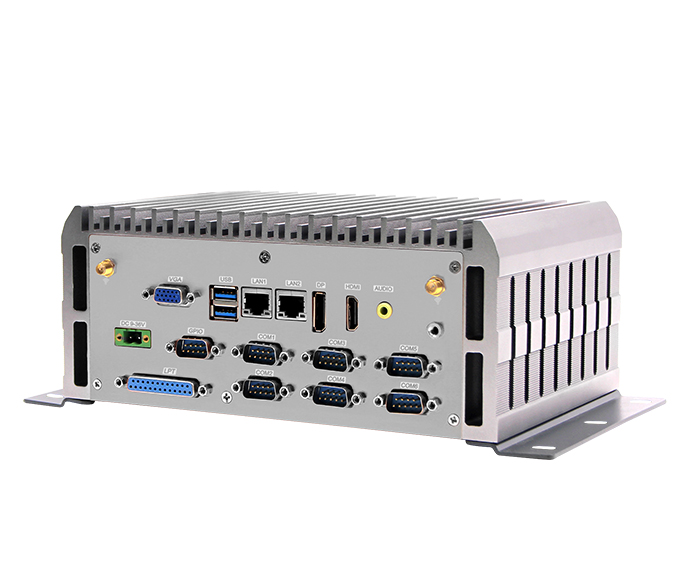

Front?panel?I/O	2LAN 1HDMI 1VGA 1DP 1DC 5RS232 1RS422/RS485 1LPT 1DC 1LINE-OUT 2USB3.0 2WIFI antenna

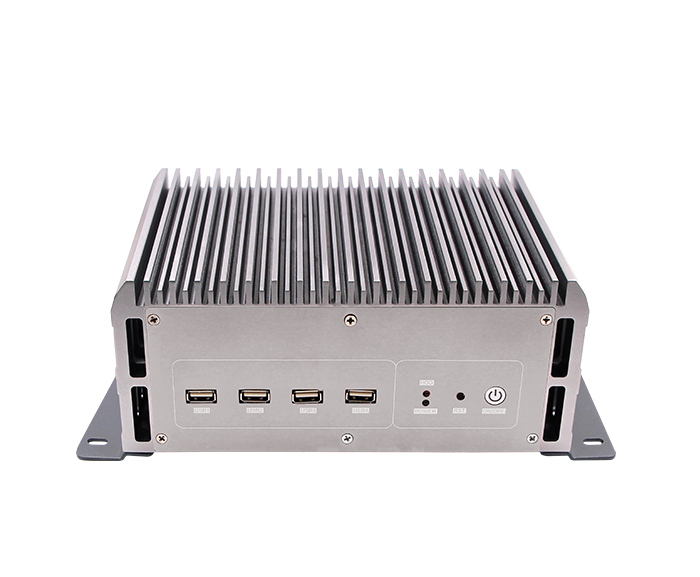

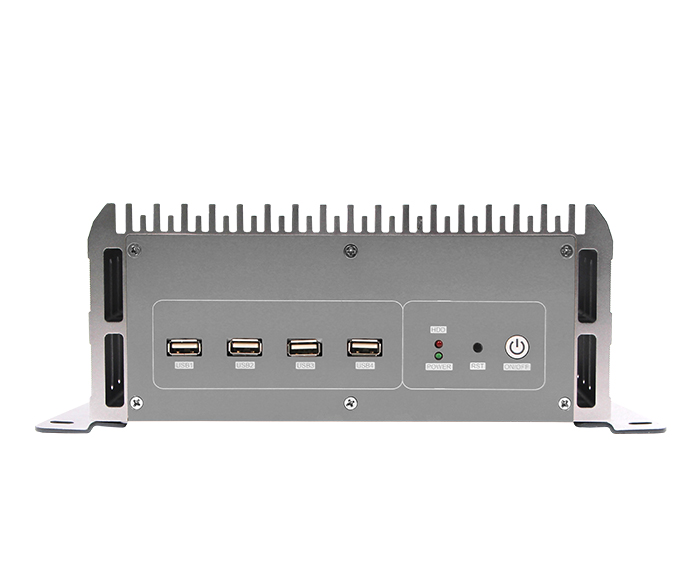

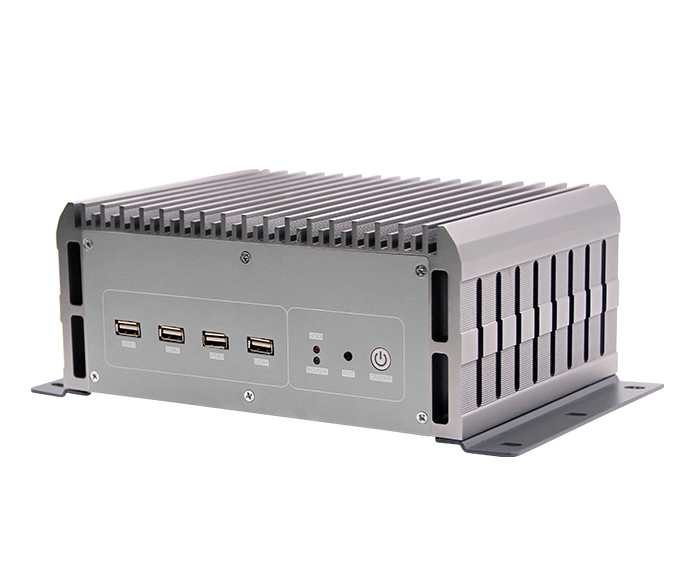

Back?panel?I/O	4USB2.0 1power?indictor 1HDD?indictor 1reset 1*power?button
OS	Windows?7?Windows?10?Linux
Standard Accessories	1power?cable?1CD
Package	Carton?net?weight?2.85kg

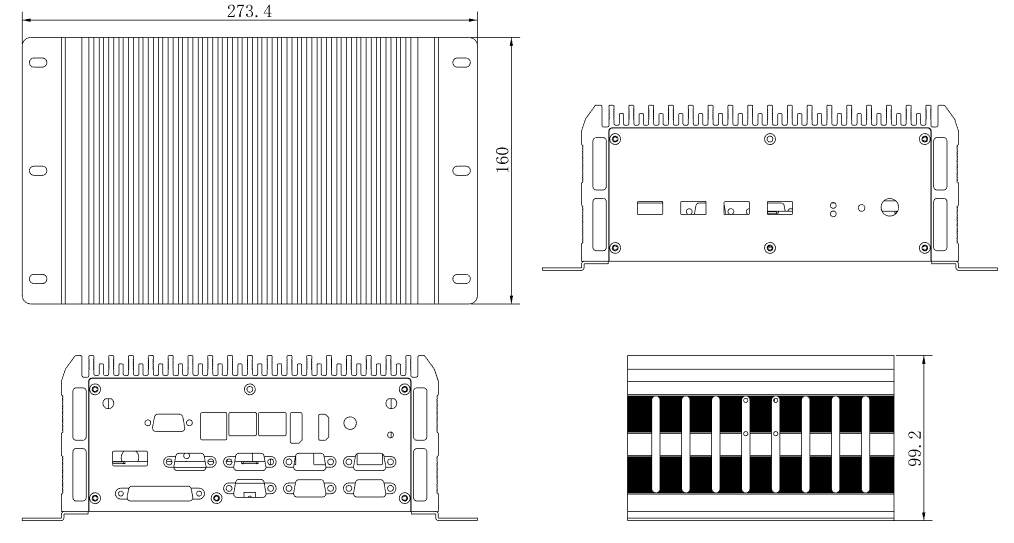

?Size

Order?information

Motherboard

Description

CPU

HM87Z3A

Intel Mobile 4Th Haswell-M i3-i5-i7 CPU；

QM87/HM86/HM87 Chipset

I3:4000M

I5:4200M

I7:4700MQ
