Q-BOX-M(TOP77)

Model : Q-BOX-M(TOP77)

Description :
◆ Onboard CPU，support Intel Mobile 2nd、3rd i3-i5-i7 processor for Optional ;
◆ 1*DDR3 SODIMM 204 Socket，Max up to be 8GB DDR3，1066/1333/1600MHz;
◆Onboard 1*Gigabit Ethernet;
◆ 4*RS232，2*RS422/485；
◆ Support power-on automatic startup function, jumper selection；
◆ Single input DC power supply DC12V ( wide voltage power supply support 9-36V input Optional);
◆ Size:235*200*56.5mm ；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Onboard CPU，support Intel Mobile 2nd、3rd i3-i5-i7 processor for Optional

◆ 1*DDR3 SODIMM 204 Socket，Max up to be 8GB DDR3，1066/1333/1600MHz。

◆Onboard 1*Gigabit Ethernet

◆ 4*RS232，2*RS422/485；

◆ Support power-on automatic startup function, jumper selection；

◆ Single input DC power supply DC12V ( wide voltage power supply support 9-36V input Optional)

◆ Size:235*200*56.5mm ；

SPECIFICATION

?Model No.	Q-BOX-M
Measure	23520056.5mm
Processor	Onboard CPU，support?Intel Mobile 2nd、3rd ?i3-i5-i7 processor for Optional
Chip	HM77/QM77
RAM	Onboard 2GB/4GB DDR3 RAM,?Max. Expanded 8Gb
Expansion slot	1 ?DDR3 SODIMM 204 Socket
Network	Onboard 1*Gigabit Ethernet
Audio	Onboard ?HDA ALC662
Storage	1MINISATA SUPPORT SSD; 4SATA
Chassis Color	Black

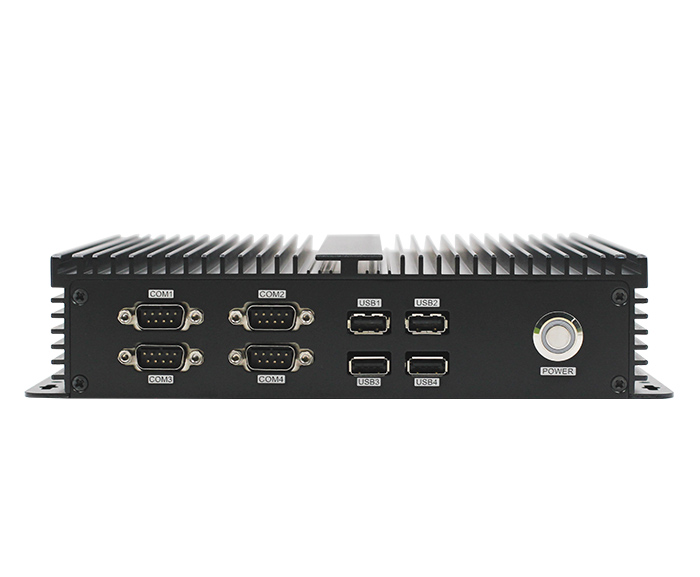

Front panel I/O	4COM（COM3 AND COM4 IS RS422/RS485）4USB 1*POW-ON/OFF（switch）indicator?light

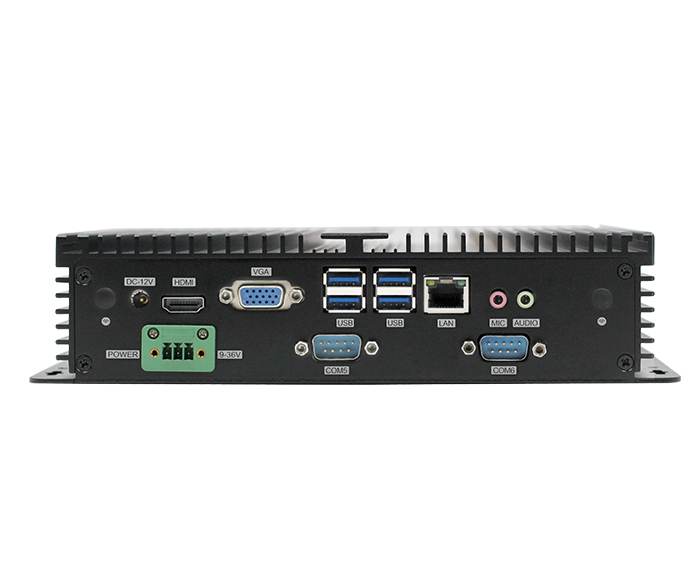

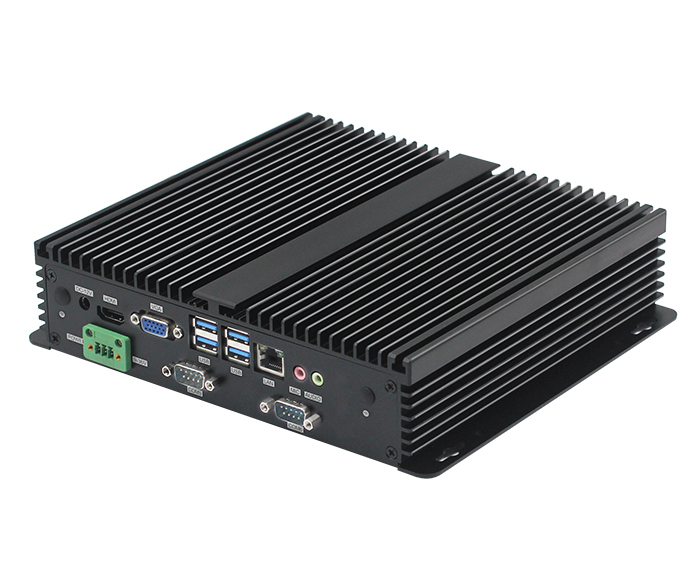

Back panel I/O	1VGA 1HDMI 4USB3.0 ?1LAN 1line out 1mic in 2COM(RS232) 1DC 1*Phoenix Terminals?3PIN?power interface
Standard Accessories	112V 5Apower adapter?1WIFI?antenna?（optional））

?Size

Order Information

Model No

SPECIFICATION

Processor

TOP77-I3

Integrated HM77/QM77?Chipset

Integrated ?Intel? Core? i3-3217U 1.80 GHz)，

Integrated 2G/4GDD（can be expansion 8G?DDR3),Default 2COM?can be expansion into 6COM）Ops can be expansion

Support 2/3rd Intel? Core? i3

Example：I3-2310M/I3-2367U

I3-3210M/I3-3227U

TOP77-I5

Integrated HM77/QM77?Chipset

IntegratedIntel? Core? i5-3337U 1.8Ghz up to 2.70 GHz,

Integrated 2G/4GDD（can be expansion 8G?DDR3),Default 2COM?can be expansion into 6COM，Ops can be expansion

Support 2/3rd Intel? Core? i5

Exmaple:I5-2415M/I5-2467U

I5-3210M/I5-3317U

TOP77-I7

Integrated HM77/QM77?Chipset

Intel? Core? i7-3667U 2.0Ghz up to 3.20 GHz,

Integrated 2G/4GDD（can be expansion 8G?DDR3),Default 2COM?can be expansion into 6COM）Ops can be expansion

Support 2/3rd Intel? Core? i7

Exmaple:I7-2620M/I7-2677U

I7-3667U/I7-3517U
