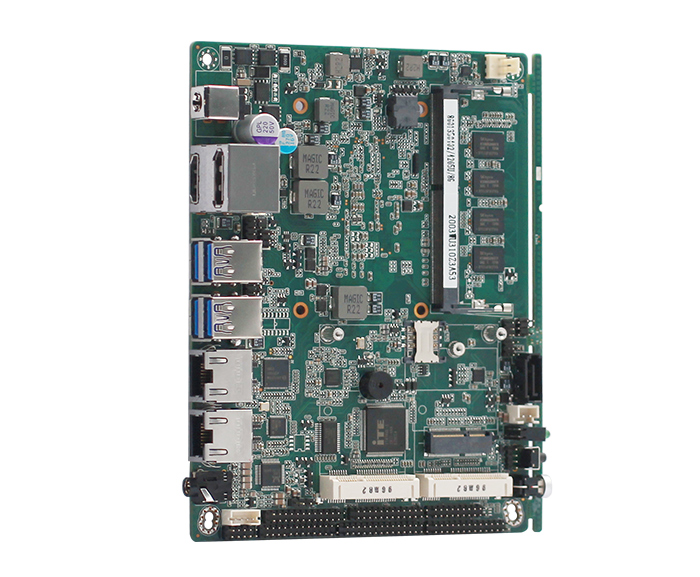

Processor system

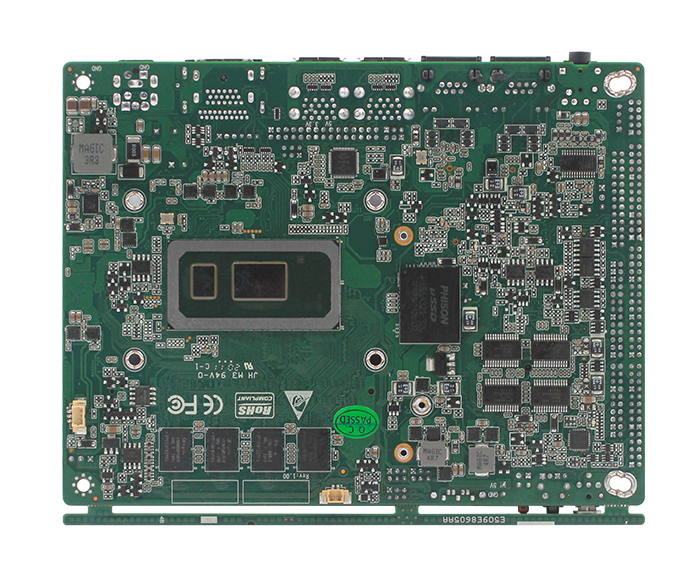

CPU

Adopt Whiskey Lake-U Celeron, Core i3 / i5 / i7 series processors

CPU package

BGA

chipset

Intel? Whiskey lake-U series SOC

BIOS

EFI BIOS

RAM

Technology Architecture

Dual channel DDR4 2133Mhz; maximum capacity supports 24G (onboard 8G + extended 16G)

Onboard memory particles

4G / 8G DDR4 onboard memory optional

Slot

1 * DDR4 SODIMM 260 Socket

video

Graphics controller

Intel? UHD Graphics 620 (graphics card for i7-8565U); the graphics card model is related to the CPU

HDMI

One HDMI1.4 interface, maximum resolution support (HDMI1.4) 4096 * 22160 @ 30HZ support 4K display

DP ++

1 DP 1.2 interface, support DP ++, maximum resolution support (HDMI1.4) 4096 * 2304 @ 60HZ support 4K display

LVDS / EDP

1 LVDS maximum support 1920 * 1080 or 1 EDP1.2 maximum support 4096x2160 @ 60 Hz 24bpp (choose one)

Dual display support

LVDS / EDP + DP, LVDS / EDP + HDMI, HDMI + DP synchronous or asynchronous display

Three displays

LVDS / EDP + DP + HDMI synchronous or asynchronous display

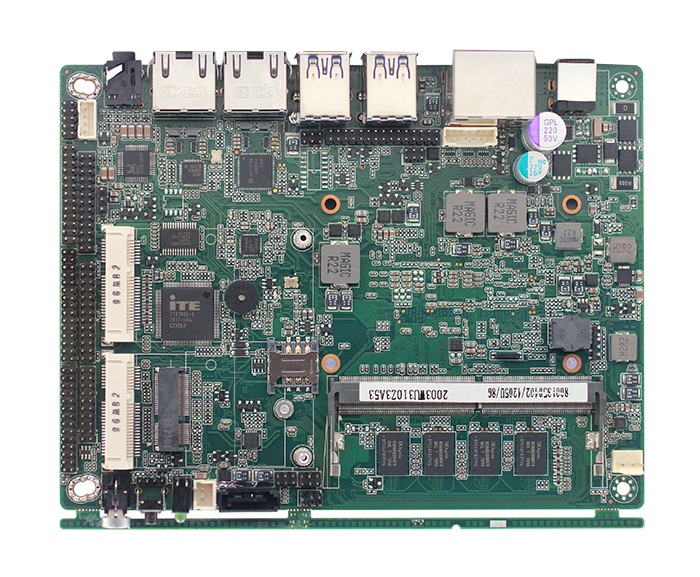

I / O backplane

port

1 * HDMI, 1 * DP ++, 4 * USB3.1 (GEN2), 2 * LAN, 1 * MIC + LINE2 OUT 1 * DC

The internet

Controller

1 Intel I211AT, one Intel I219-LM

Audio

ALC662-VD

1 * MIC1,1 * LINE2 OUR, 1 * MIC2,1 * FRONT OUT, 1 * SPDIF, 1 * AMPLIFIER OUT (TPA3113D2,6W)

Super I / O

Controller

IT8786E-I / EX / GX / HX

Hardware monitoring

Watchdog timer

0-255 seconds, provide watchdog routine

Cooler

Aluminum radiator with fan

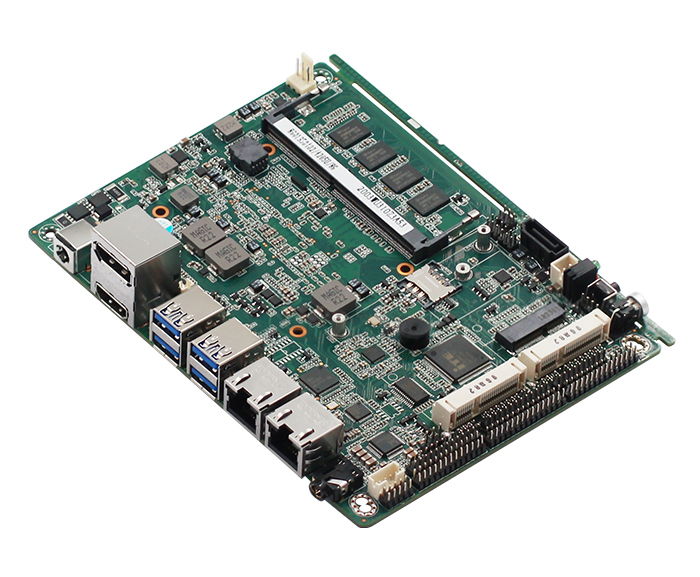

Input / output interface

USB

4 * USB3.1 (USB3.1 GEN2 is backward compatible), when using Celeron Pentium processor, USB can only reach GEN1 4 USB2.0

Serial port

COM1, 2, 4 can be selected as RS232 or RS485 by jumper cap and BIOS, COM3 can be selected as RS422 / RS485 by BIOS, COM5, COM6 are RS232

GPIO

8 bits, provide routines, freely define input / output, 3.3V@24mA level

Expansion bus

Mini-PCle

1 Mini-PCIe slot, support PCIE signal and USB signal device

M.2

M.2 KEY E: 2230 (WIFI) interface

storage

SATA

1 standard SATAIII interface, maximum transfer rate 6Gb / s

M-SATA

1 Mini-PCIe M-SATA Scoket, support SANDISK protocol, maximum transfer rate 6gb / s (choose with onboard SSD)

Onboard SSD

Onboard 32G / 64G / 128G (choose one with MSATA)

power supply

Power type

DC 9-36V power supply

working environment

Operating temperature

-20 ℃ ~ + 60 ℃

storage temperature

-40 ℃ ~ + 85 ℃

Working humidity

0% ~ 90% relative humidity, no condensation

Storage humidity

0% ~ 90% relative humidity, no condensation

system

WIN10 Linux

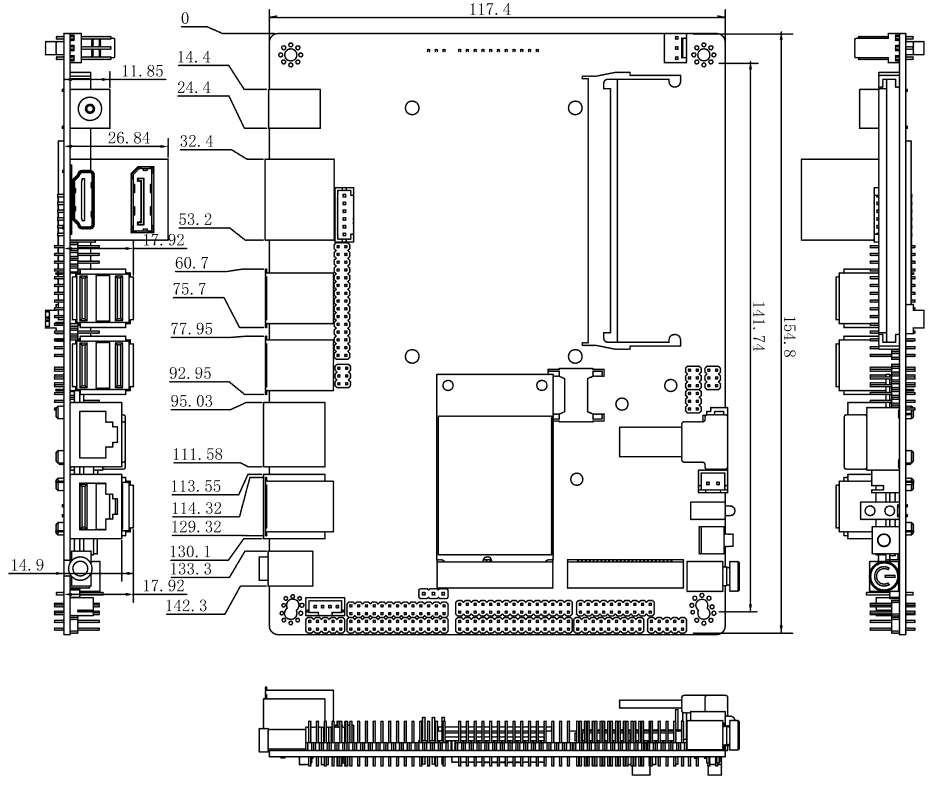

physical dimension

size

154.8 x 117.4 mm

weight

0.5KG

Certification

CE,RoHS,FCC
