FA-19U4J

Model : FA-19U4J

Description :
◆Intel Baytrail serial （J1900/N2806/N2900/J1800）；
◆ Onboard 2GB/4GB DDR3 Ram；
◆ 4*Intel I211ATGigabit Ethernet（LAN1andLAN2，LAN3 and LAN4support 2 group Bypass function，Optional）；
◆ Support 1*VGA；
◆ 1*SATA 1*Mini-SATA（pick one of two）1*Cfast ；
◆Support power-on automatic boot function, jumper selection;
◆ Single input DC power supply, DC12V;
◆ size: 480*200*45mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆Intel Baytrail serial （J1900/N2806/N2900/J1800）；

◆ Onboard 2GB/4GB DDR3 Ram；

◆ 4*Intel I211ATGigabit Ethernet（LAN1andLAN2，LAN3 and LAN4support 2 group Bypass function，Optional）；

◆ Support 1*VGA；

◆ 1*SATA 1*Mini-SATA（pick one of two）1*Cfast ；

◆Support power-on automatic boot function, jumper selection;

◆ Single input DC power supply, DC12V;

◆ size: 480*200*45mm；

specification

Model	FA-19U4J
size	48020045mm
Processor	Intel Baytrail serial（J1900/N2806/N2900/J1800）
Chipset	Intel Baytrail single chipset
Memory	Onboard 2GB/4GB DDR3 Ram,,max expansion to be 8gb ram
Expansion slot	1 DDR3 SODIMM 204 Socket
Lan	4*Intel I211AT Gigabit Ethernet（LAN1andLAN2，LAN3 and LAN4support 2 group Bypass function，Optional）
storage	1MINISATA 1SATA（pick one of two） 1*CF/Cfast
Color	Black

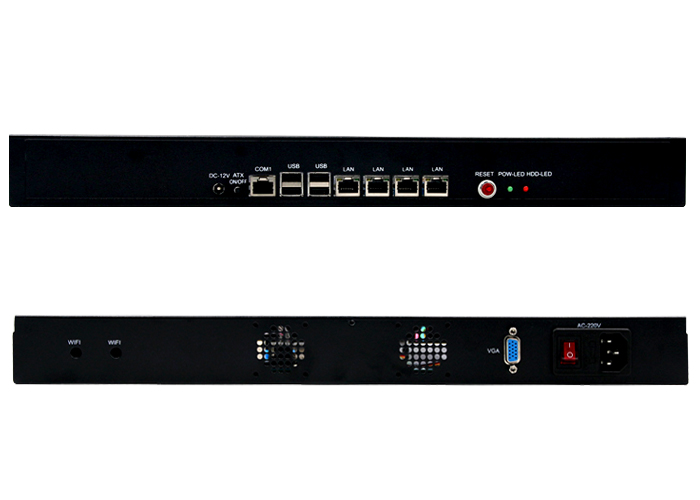

Front panel interface	4Intel I211AT lan Port ?1RJ45 RS232 1POWER_LED 1HDD_LED 1Reset reset Button ?4USB 1*Switch Button
Backpanel interface	1VGA Port 1AC Power Port 2WIFI antenna Port ?1AC Power button

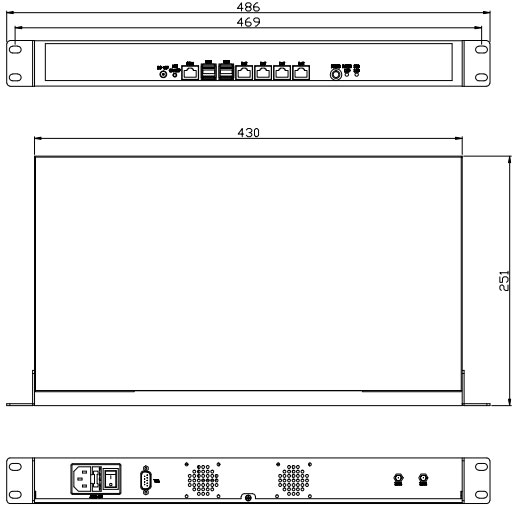

? Size?

Order Information

Adjustable Motherboard

description

CPU Optional

?

FA-19U4J

Intel Baytrail serail （J1900/N2806/N2900/J1800）

Onboard 2GB/4GB?DDR3L?Ram

4*Intel I211ATGigabit Ethernet

?With TOP19B4L Motherboard

??

J1900/N2806/N2900/J1800
