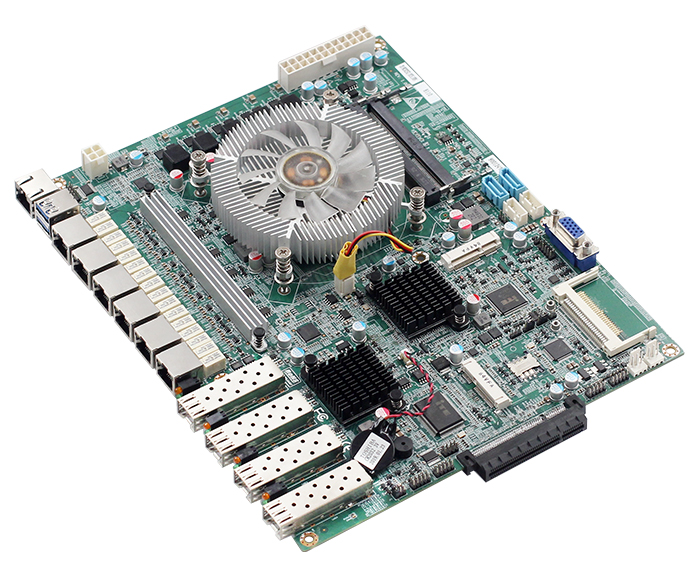

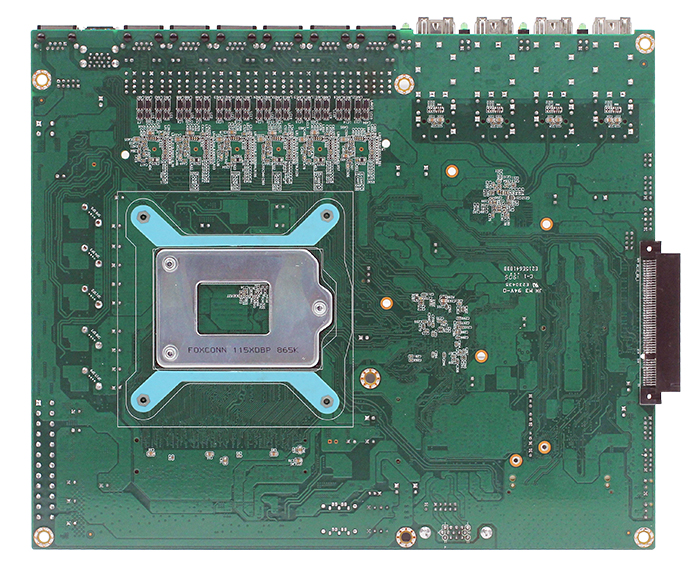

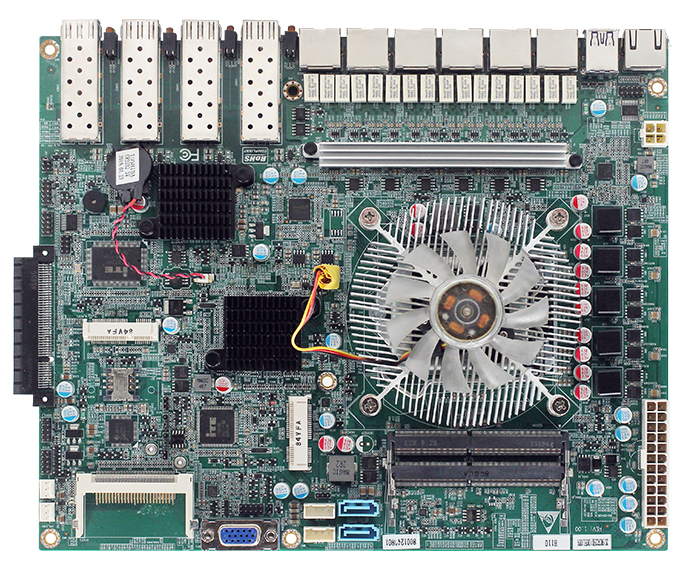

SK110C6L

Model : SK110C6L

Description :
◆ Support LGA1151 socket Intel 6th and 7thi3-i5-i7/Pentium/Celeron CPU；
◆ H110/H170/Z170 high-speed chipset；
◆ 2*DDR4 Ram socket，Support DDR4 2133/2400Mhz supportdual channel；
◆ 1*VGA Port;
◆ 6*Intel I211 Network card（LAN1 and LAN2，LAN3 and LAN4suppor 2*Group Bypass function）；
◆ 4*SFP；
◆ 2*RS232 Com(COM1 is one of RJ45 interface and pin header, and COM2 is pin header interface.)；
◆ ATX Power supply；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Support LGA1151 socket Intel 6^th and 7^thi3-i5-i7/Pentium/Celeron CPU；

◆ H110/H170/Z170 high-speed chipset

◆ 2*DDR4 Ram socket，Support DDR4 2133/2400Mhz supportdual channel

◆ 1*VGA Port

◆ 6*Intel I211 Network card（LAN1 and LAN2，LAN3 and LAN4suppor 2*Group Bypass function）

◆ 4*SFP

◆ 2*RS232 Com(COM1 is one of RJ45 interface and pin header, and COM2 is pin header interface.)

◆ ATX Power supply；

Specifications

? processor	CPU ??	Support?LGA1151?socket Intel6^th?and 7^th?i3-i5-i7/Pentium/Celeron CPU
	CPU?package	LGA1151
	Chip set	H110/H170/Z170High-speed chipset (other than H110, other chipsets support RAID)
	BIOS	EFI BIOS
Memory	Technology Architecture	Dual channel DDR4 2133/2400MHz
Memory	socket	2 DDR4 memory slots,
? Video	Graphics controller	Intel HD Graphics 610 (G4560 graphics card); graphics card model is related to the CPU
? Video	VGA	VGA supports a maximum resolution of 2048x1536
I/O?backpanel	Port	1RJ45 serial port 2USB3.0 6LAN 4 optical port (optional 2)
Internet	controller	6 Intel I211-AT Gigabit LAN cards (LAN1 and LAN2, LAN3 and LAN4 support two groups of Bypass functions)
Internet	controller	4 *SFP I350 ?Chipset Ports
Super ?I/O	Graphics controller	NCT6102D
Hardware controller	Watchdog timer	0-255 seconds, providing a watchdog routine
? Input/output Port	USB	2USB3.0 compatible with USB2.0 / 1.1, 2USB2.0, maximum support +5V/1.5
	Serial port	2 RS232 serial ports (COM1 is RJ45 interface and pin headers are selected, COM2 is pin header interface)
	PS/2	1*PS/2 pin connector
Expansion wire	Mini-PCle	1 Mini-PCIe slot for PCIe and USB devices
Expansion wire	PCIE	1 PCIE_8X interface
storage	SATA	2 standard SATAIII interfaces with a maximum transfer rate of 6Gb/s
	M-SATA	1 M-SATA Scoket with SANDISK protocol, maximum transfer rate 6gb/s
	CF	1*CF card slot
Power	Power type	ATX power supply
? Working temperature	Operating temperature	-20℃ ~ +60℃
	storage temperature	-40℃ ~ +85℃
	Working humidity	0% ~ 90% relative humidity, no condensation
	Storage humidity	0% ~ 90% relative humidity, no condensation
System support	?	Support for Windows7 Windows10 Linux on the 6th generation CPU Support for Windows 10 Linux on the 7th generation CPU
size	size	255?x 210?mm
size	weight	0.5KG
Certifications	?	CE,ROHS,FCC

size ：

order information

Model

description

CPU?optional

SK110C6L

Main chipset：Intel H110/H170/Z170

CPU?socket：LGA 1151

Memory type: 2*DDR4 memory slot

?

CPU?type：

Intel6^th?and 7^th?i3-i5-i7/Pentium/Celeron CPU
