Description :
◆Compact and lightweight embedded design support for Intel Baytrail-D / I / M series processors;
◆DDR3 SODIMM 204 Socket Ram socket max support 8gb Ram
◆Onboard 32/64/128G EMMMC chipset (Optional)
◆Mini-PCIE socket，support wifi Module，combine with SIM card slot ，support 3G Module(only support USB singal equipment)
◆I/O rich Port,Including 2*USB Port/4*Intel I211 lan Card,1*HDMI,1*VGA display connector 1*RJ45 RS232 Port
◆The fanless design, no noise design, stable and efficient
◆12V DC Power supply
|
Mini PC |
Model Name |
N-BOX-J2 |
|
|
Color |
Color |
|
|
size |
134*126*45.3 mm |
|
|
material |
6063 |
|
Motherboard
|
Chipset |
Baytrail-I/D/M serial processor chipset |
|
|
CPU |
Support Baytrail-I/D/M serial CPU (J1900 J1800) |
|
|
Ram |
Single channel DDR3 1066/1333/1600MHz，max support 8G |
|
|
Graphics card |
Intel HD Graphics |
|
|
Expansion |
1*MINI-PCIE interface for loading wifi, 3G/4G modules (USB signal devices only) |
|
|
|
1*MINI-SATA interface for loading SSD solid state drives |
|
|
|
1* onboard EMMC 32/64/128G (optional) |
|
Storage |
HDD |
2.5inch laptop hard disk |
|
|
SSD |
SSD |
|
|
EMMC |
32/64/128G（optional ） |
|
Function |
Display output |
HDMI |
|
|
Internet Output |
4*Intel I211 Lan Port |
|
|
USB |
1*USB2.0、1*USB3.0 |
|
|
Front I / O interface |
1* power switch (with indicator light), 1* reset button, 1*HDMI, 1*RJ45 interface RS232, 2*USB |
|
|

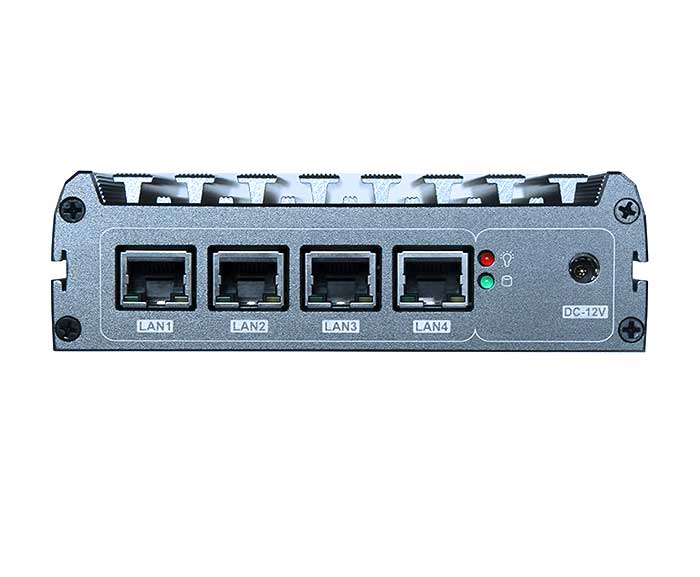

Rear I / O connector |
4*Intel I211 high-performance Gigabit LAN, 1* power indicator, 1* hard disk indicator, 1*DC power supply interface |
|
|
Working temperature |
-10~60℃ |
|
|
Operating system |
Windows7、Windows 8、Windows8.1 Windows10、linux |
|
|
Power supply |
DC12-19V power supply |
