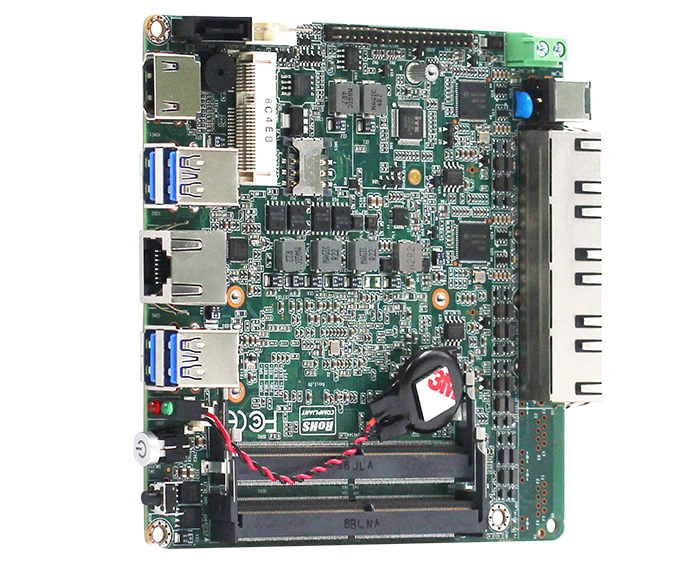

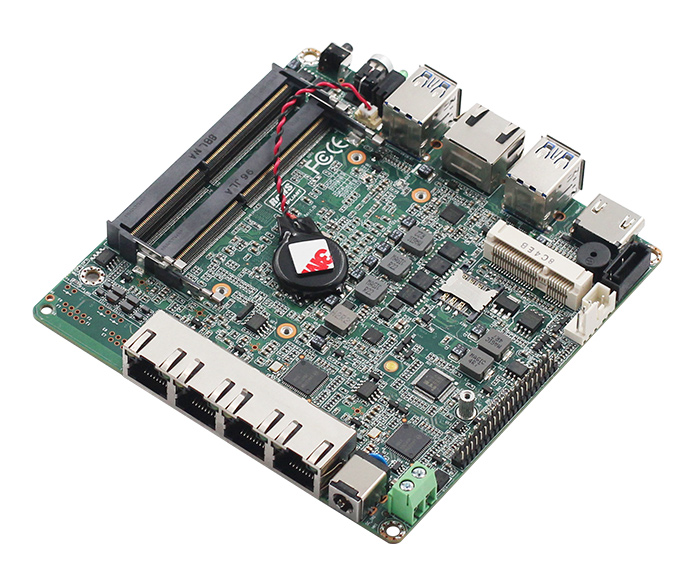

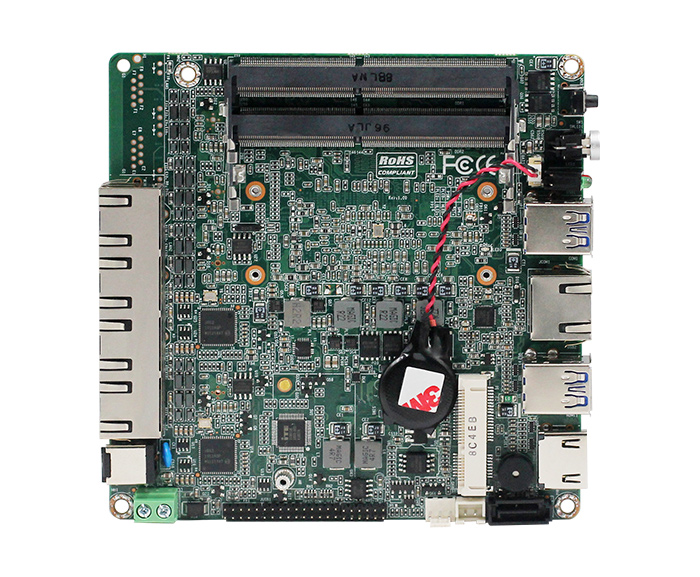

Processor

CPU

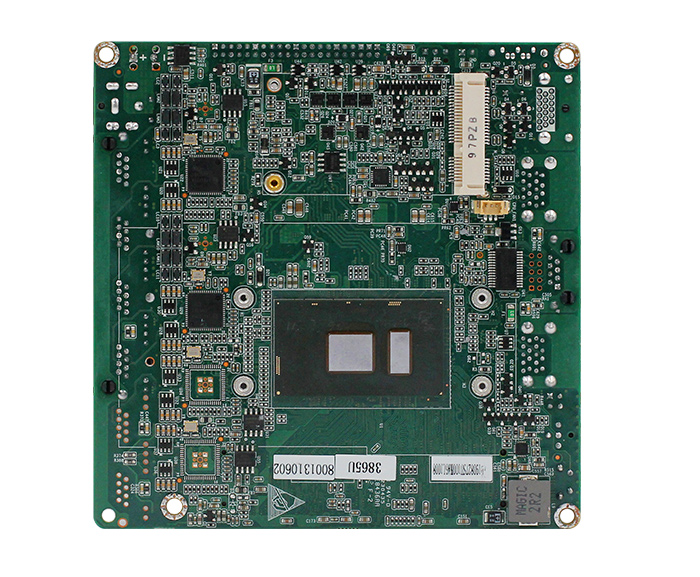

Intel? Core??7^th??Kaby lake-U?3865u?/i3/i5/i7?Processor

CPU?package

BGA

Intel chipset

Intel ?Kaby lake-U??serial SOC

BIOS

EFI BIOS

Memory

Technology Architecture

Dual channel DDR4?2133Mhz；

socket

2?*DDR4?SODIMM 260?Socket

?

Video

?

Graphics controller

Intel HD Graphics 520 (I3-6100U graphics card); graphics card model is related to the CPU

HDMI

Maximum resolution support (HDMI1.4) 4096*2304@30HZ Support 4K display

I/O?backpanel

Ports

1*HDMI, 4*LAN, 4*USB3.0 1* quick start button with indicator light 1* reset button 1*DC 1* power indicator 1* hard disk indicator

Internet

controller

4*Intel I211AT?or Intel I210?Gigabit lan Port (optional）

Super ?I/O

controller

ITE8613

Hardware monitoring

?

Watch-dog timer

0-255 seconds, providing a watchdog routine

Cooler

Aluminum fan heater (supports automatic and manual fan speed adjustment)

?

Input/output interface

?

USB

4*USB3.0 compatible with USB2.0 / 1.1, 2*USB2.0, maximum support +5V/1.5A (USB2.0 is the pin header interface）

Com

1*RJ45 interface RS232 or RS485 (485 is the pin header, RS232 or RS485 is selected by jump cap and BIOS)

GPIO

8-bit, providing routines, freely defined input/output, 3.3V@24mA level

?

Mini-PCle

1 Mini-PCIe slot for PCIE signal and USB signal devices

Expansion bus

storage

SATA

1 standard SATAIII interface with a maximum transfer rate of 6Gb/s

M-SATA

1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces)

power supply

?

Power type

DC 12-19V Power supply

?

working environment

?

Operating temperature

-20℃ ~ +60℃

storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90% relative humidity, no condensation

Storage humidity

0% ~ 90% relative humidity, no condensation

physical dimension

?

size

120?x 120?mm

weight

0.5KG

Certifications

?

CE,RoHS,FCC
