FA-19U6J

Model : FA-19U6J

Description :
◆IntelBaytrail Series （J1900/N2806/N2900/J1800）；
◆ Onboard 2GB/4GB DDR3L Memory；
◆ Onboard 6*Intel I211-AT Gigabit Ethernet LAN(LAN1 and LAN2，LAN3 and LAN4 support 2 Group Bypass Function);
◆ Provide 1*VGA；
◆ 1*SATA 1*Mini-SATA（Alternative）1*Cfast ；
◆Support power-on automatic startup function，Jump Line Selection；
◆ Single input DC power supply，DC12V；
◆ Size: 480*200*45mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆IntelBaytrail Series （J1900/N2806/N2900/J1800）；

◆ Onboard 2GB/4GB DDR3L Memory；

◆ Onboard 6*Intel I211-AT Gigabit Ethernet LAN(LAN1 and LAN2，LAN3 and LAN4 support 2 Group Bypass Function);

◆ Provide 1*VGA；

◆ 1*SATA 1*Mini-SATA（Alternative）1*Cfast ；

◆Support power-on automatic startup function，Jump Line Selection；

◆ Single input DC power supply，DC12V；

◆ Size: 480*200*45mm；

Model No.	FA-19U6J

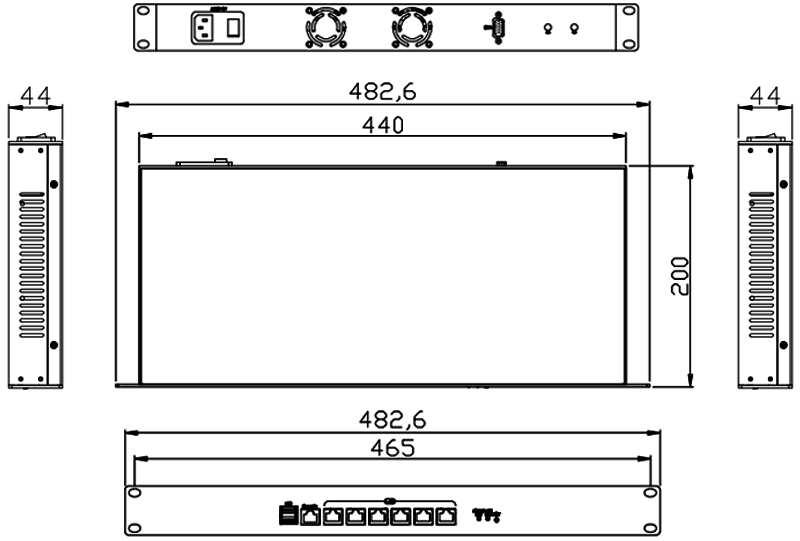

Measure	48020045mm
Processor	Intel Baytrail Series（J1900/N2806/N2900/J1800）
Chipset	Intel Baytrail Single Chipset
Memory	Onboard 2GB/4GB DDR3 memory,maximum up to 8G
Expansion slot	1 DDR3 SODIMM 204 Socket
Network	6*Intel I211AT Gigabit Ethernet LAN(LAN1?and LAN2，LAN3?and LAN4?support 2 Group Bypass?Function)
Storage	1MINISATA 1SATA（二選一） 1*CF/Cfast
Colour	Black

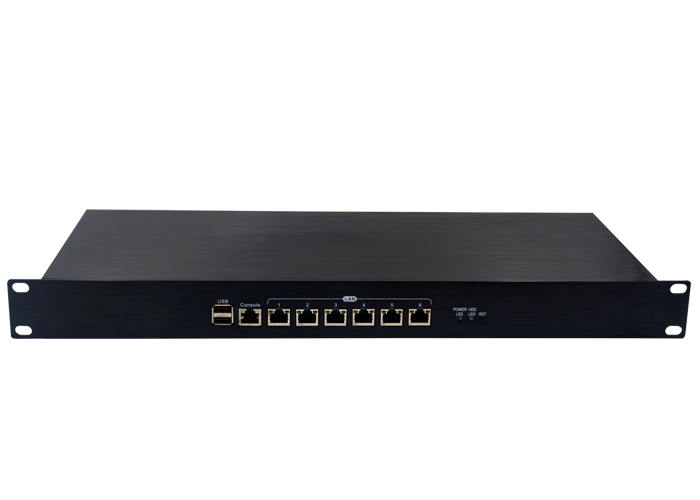

Front panel I/O	6Intel I211AT網(wǎng)卡 1RJ45 RS232 1POWER_LED 1HDD_LED 1Reset Switch 4USB 1*POWER ON/OFF

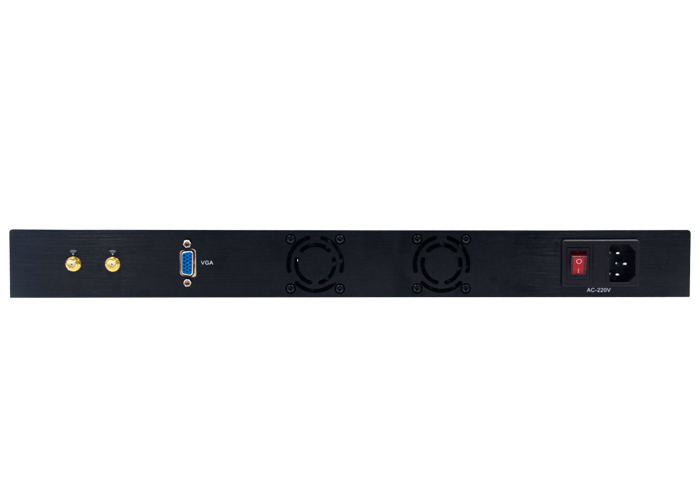

Back panel I/O	1VGA, 1AC power supply, 2WIFIantenna?interfaces,?1AC POWER ON/OFF
