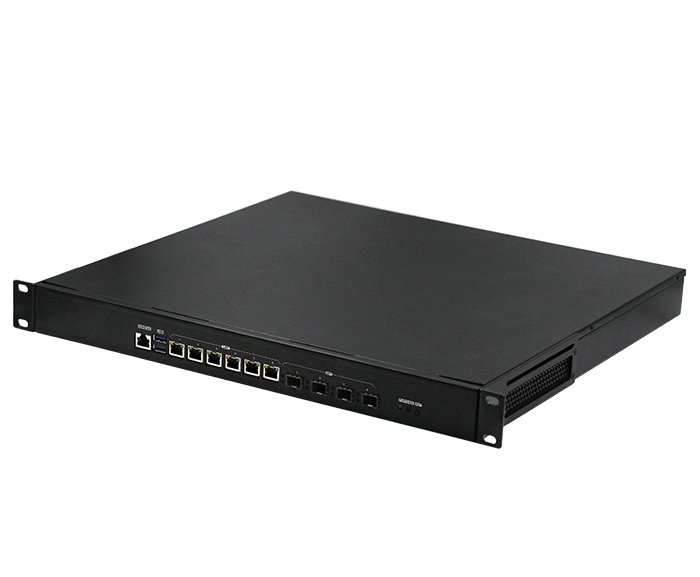

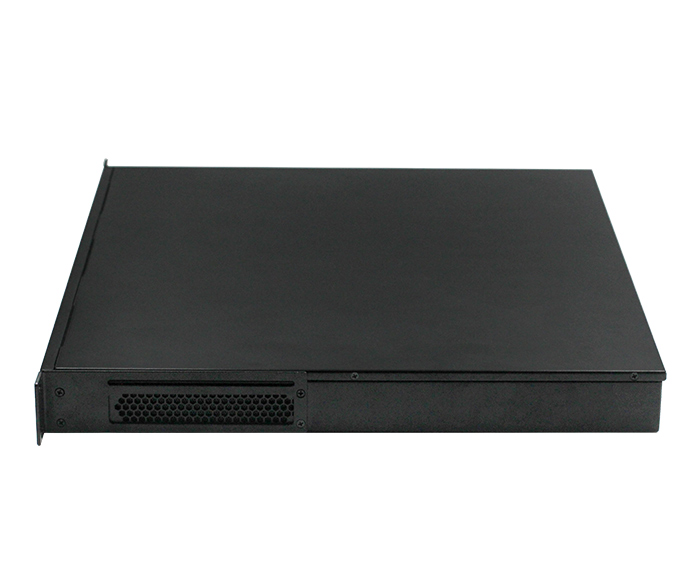

FA-1106S

Model : FA-1106S

Description :
◆ Support LGA1151 socket Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU；
◆ H110/H170/Z170 high-speed chipset ;
◆ 2*DDR4 Ram socket，support DDR4 2133/2400Mhz supportdual channel ;
◆ 1*VGA Port ;
◆ 6*Intel Lan Port I211 or I210 chipset for optional，(（LAN1 and LAN2，LAN3 and LAN4support 2*group Bypass function）;
◆ 4*SFP（ chipset :I350）;
◆ 1*RJ45 Port RS232 Com;
◆ ATX Power supply；
◆ size :486*411*43.9 mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Support LGA1151 socket Intel 6^th and 7^th

i3-i5-i7/Pentium/Celeron CPU；

◆ H110/H170/Z170 high-speed chipset

◆ 2*DDR4 Ram socket，support DDR4 2133/2400Mhz supportdual channel

◆ 1*VGA Port

◆ 6*Intel Lan Port I211 or I210 chipset for optional，(（LAN1 and LAN2，LAN3 and LAN4support 2*group Bypass function）

◆ 4*SFP（ chipset :I350）

◆ 1*RJ45 Port RS232 Com

◆ ATX Power supply；

◆ size :486*411*43.9 mm；

Specification

Model	FA-1106S
size	48641143.9mm
Processor	Support LGA1151 socket Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU
Chipset	H110/H170/Z170 high-speed chipset
Memory	2*DDR4 Ram socket，support DDR4 2133/2400Mhz support dual channel ；
Lan	6Intel Lan Port I211 or I210 chipset for optional (（LAN1 and LAN2，LAN3 and LAN4support 2group Bypass function） 4*I350 SFP Ports
Storage socket	1MINISATA 1SATA 1*CF/Cfast
Color	Black
System	6^th?CPU supports Windows7 Windows10 LINUX ?7^th?CPU supports Windows10 LINUX

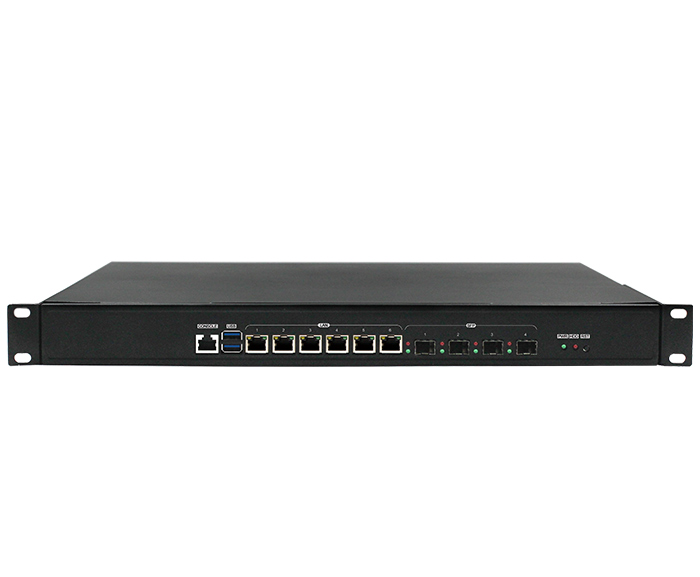

Front panel interface	6Intel Lan Port I211 or I210 chipset for optional 1RJ45 RS232 1POWER_LED 1HDD_LED 1Reset Restart button 2USB 3.0 1Switch button 4I350 SFP Ports

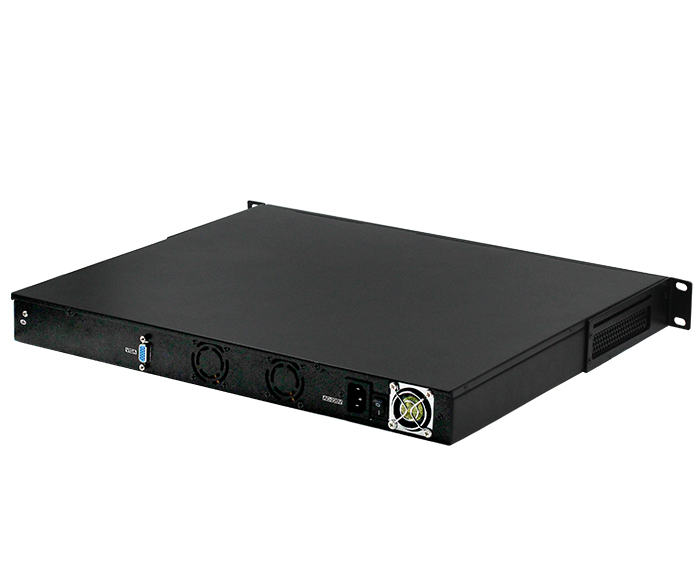

Back panel interface	1VGA interface 1AC power connector 2WIFI antenna interface 1AC power switch

?Size

Order information

Suitable Motherboard Model

description

CPU optional

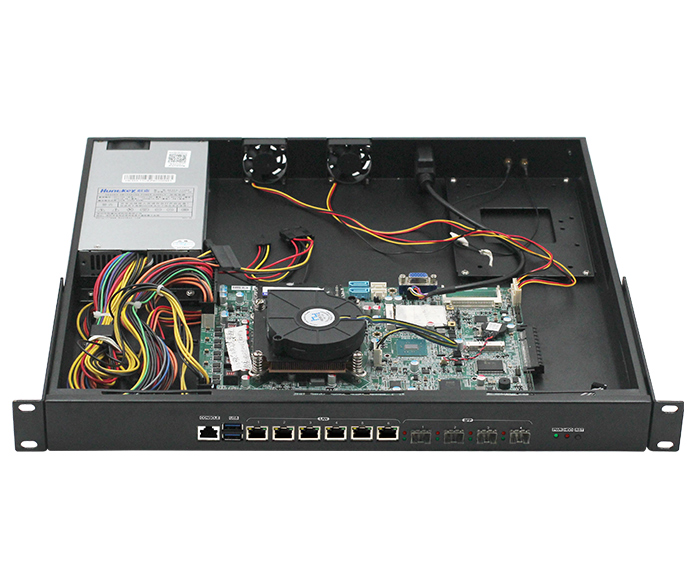

SK110C6L

Main chipset：Intel H110/H170/Z170

CPU?socket：LGA 1151

Ram type：2*DDR4?Ram socket

CPU?type ：

Intel6^th?and 7^th?i3-i5-i7/Pentium/Celeron CPU
