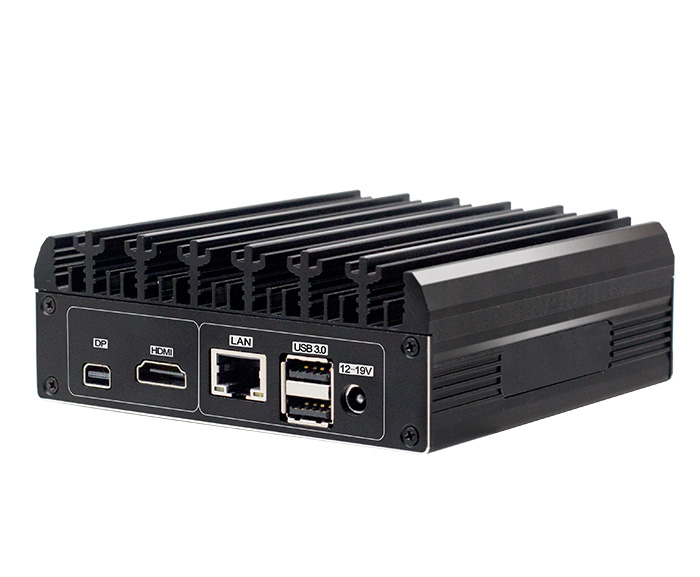

U-BOX

Model : U-BOX

Description :
1.Integrated Intel 4th/5th Mobile inel Haswell/Broadwell-U single CPU；
2.2 *DDR3L SODIMM 204 Socket；
3.Providing 1*MINI DP,1*HDMI；
4.Support power-on automatic boot function, jumper selection；
5.Single input DC power supply, DC12-19V power supply；
6.Form factor: 115*110*42.7mm;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

1. Integrated Intel 4^th/5th Mobile inel Haswell/Broadwell-U single CPU；

2. 2 *DDR3L SODIMM 204 Socket；

3. Providing 1*MINI DP,1*HDMI；

4. Support power-on automatic boot function, jumper selection；

5. Single input DC power supply, DC12-19V power supply；

6. Form factor: 115*110*42.7mm

Specification

Model	U-BOX
Size	11511042.7mm
Processor	Integrated Intel 4th/5th Mobile Haswell/Broadwell-U?single chipset CPU
Chipset	Intel single chipset
Ram socket	2*DDR3L?SODIMM 204 Socket
Lan Port	Onboard?1*?Gigabit Ethernet
Audio	Onboard ?HDA ALC662
storage	1NGFF_SSD slot(support 4222mm）; 1*SATA3.0
Color	Black

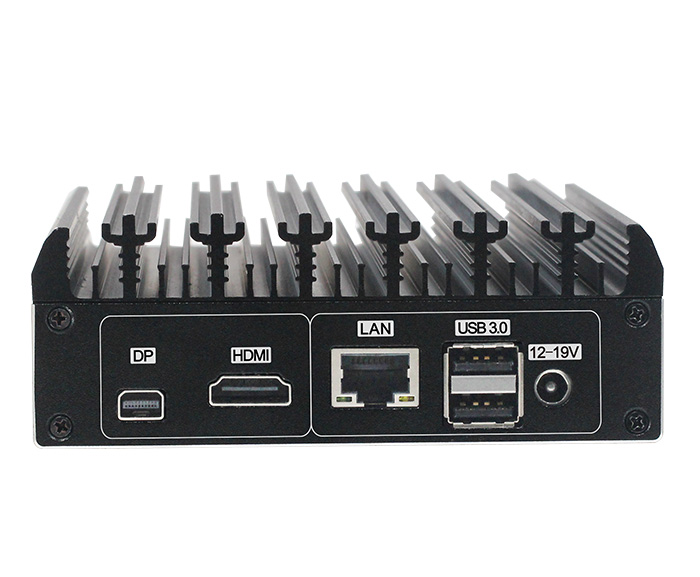

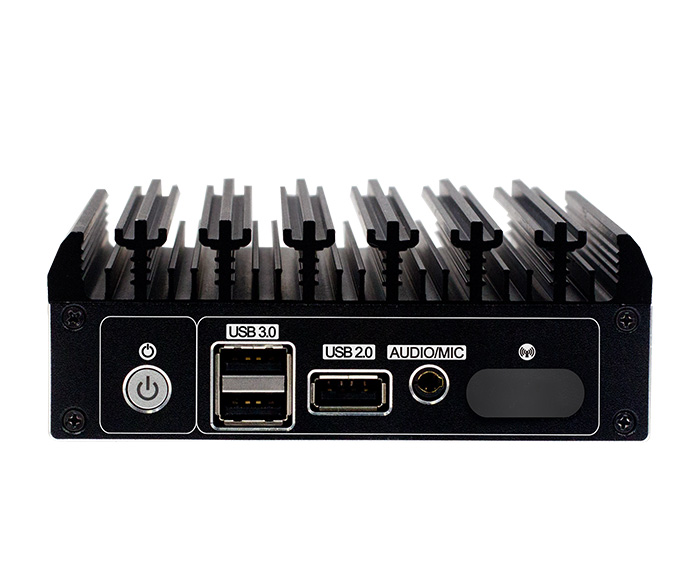

Panel interface	1LAN ?1HDMI ?1MINI DP 1DC ?1MIC-IN ?1LINE-OUT??2USB3.0 3USB2.0 1switch button 11*IRInfrared receiving port
Material	Aluminum
Package	Mini PC/Power supply/CD driver/1*user's Guide

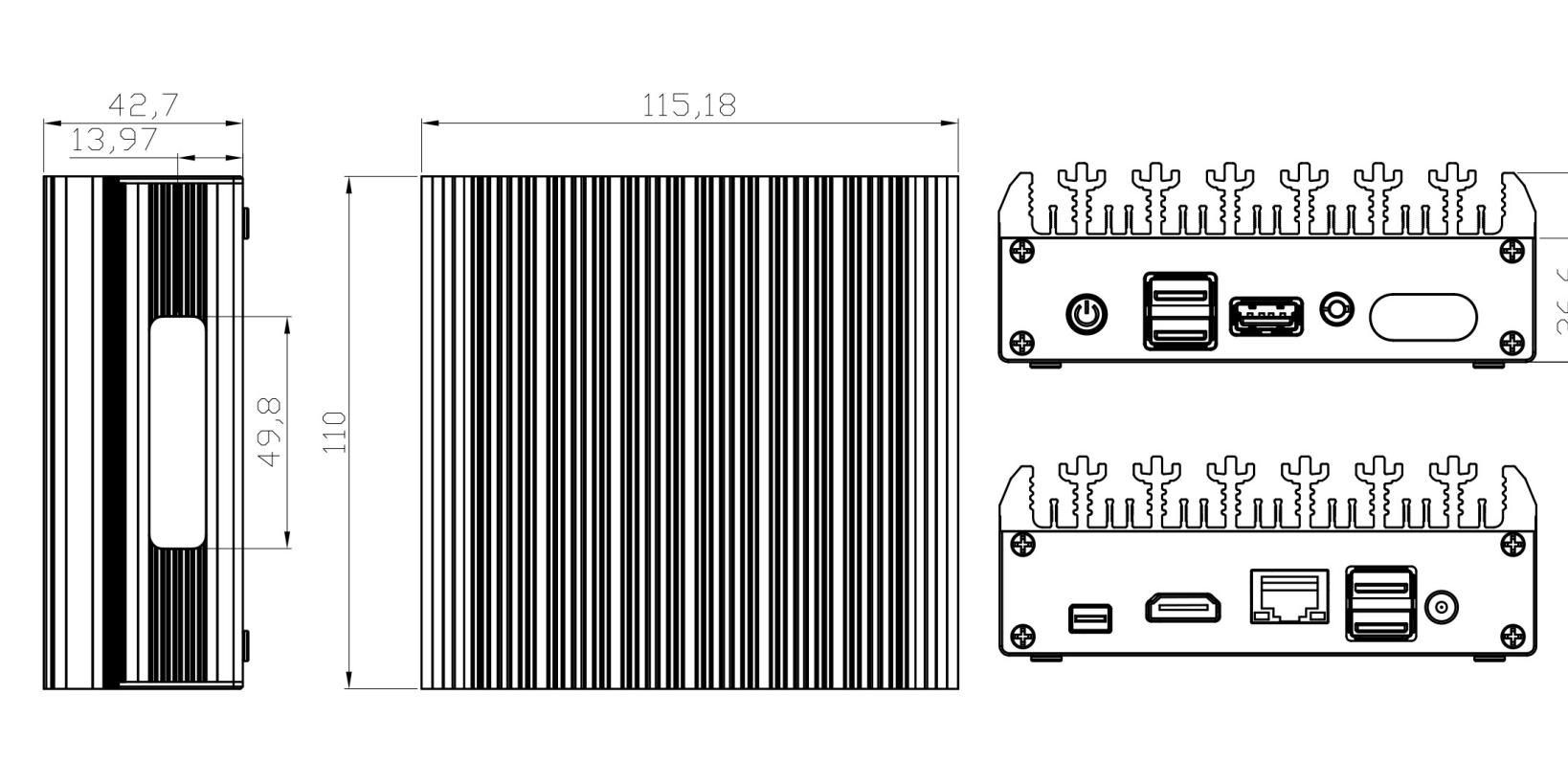

?Size
order information

Inner motherboard model

Description

CPU optional

?

HU80CA/HU90CA-I3

Integrated Intel 4th/5th MobileHaswell/Broadwell-U

?

Support 4rd/5rd?Intel? Core? i3

example：I3-4100U，I3-5010U

?

?

HU80CA/HU90CA-I5

Integrated Intel 4th/5th MobileHaswell/Broadwell-U

?

Support 4rd/5rd?Intel? Core? i5

Example：I5-4200U,I5-5200U

?

?

HU80CA/HU90CA-I7

Integrated Intel 4th/5th MobileHaswell/Broadwell-U

?

Support 4rd/5rd?Intel? Core? i7

Example：I7-4500U,I7-5500U
