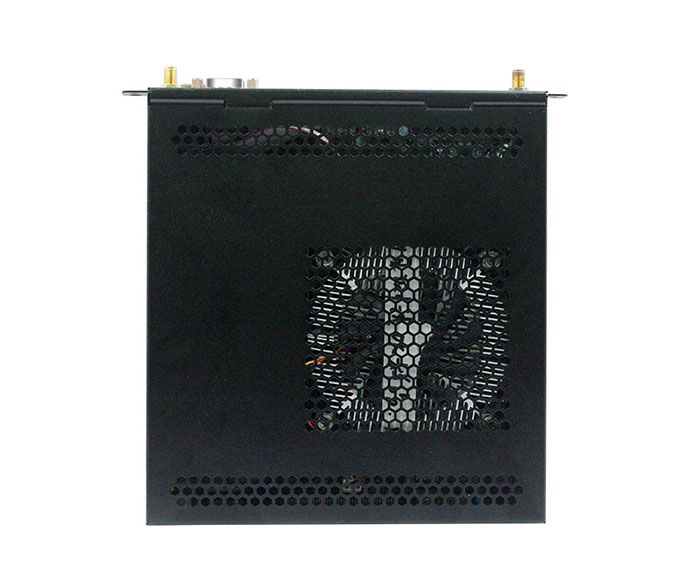

OPS119S

Model : OPS119S

Description :
◆Support LGA1151 socket Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU;
◆ H110/H170 high-speed chipset；
◆ Providing 1*VGA,1*HDMI，4*USB3.0，2*USB2.0 1*Com Port ;
◆support OPS expansion，regards as INTEL OPS-C+socket standard；
◆ Support power-on automatic power-on function, jumper selection;
◆ Single input DC power supply，DC12-19V;
◆ size: 204*195*42mm;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆Support LGA1151 socket Intel 6^th and 7^th

i3-i5-i7/Pentium/Celeron CPU

◆ H110/H170 high-speed chipset；

◆ Providing 1*VGA,1*HDMI，4*USB3.0，2*USB2.0 1*Com Port

◆support OPS expansion，regards as INTEL OPS-C+socket standard；

◆ Support power-on automatic power-on function, jumper selection;

◆ Single input DC power supply，DC12-19V

◆ size: 204*195*42mm

Specifications

Model	OPS119S
Size	20419542mm
Processor	Support LGA1151?socket Intel 6^th?and 7^thi3-i5-i7/Pentium/Celeron CPU G4400/G4560/G5400 I3-6100/I3-7100 I5-7200/I5-7400 I7-6700/I7-7700
Chipset	H110/H170?high-speed chipset
Ram socket	1 *DDR4 SODIMM 260 Socket,max to be 32GB
Internet	Onboard 1*Gigabit Lan Port
Audio	Onboard?HDA ALC662
Storage	1NGFF 1SATA3.0 1*SATA_HDD
Display Port	HDMI and VGA
Operate system	Windows8.1 Windows 10 Linux
Working termperature	-5°C ~40°C / 30% ~ 98% RH
Color	Black
USB	4*USB3.0 2.USB2.0

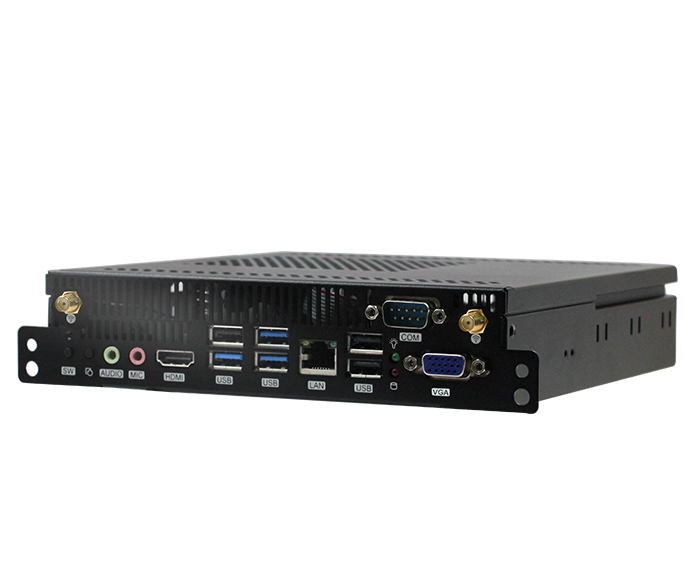

Panel interface	1LAN ?1HDMI ?1VGA ?1COM ?1DC ?1MIC-IN ?1LINE-OUT 2WIFI?antenna Port?1* switch button 1* reset button 1* hard disk indicator 1* power indicator
OPS?Interface board Port	1LINE-OUT ?1HDMI ?1DP ?1DC ??3USB ??1switch button

?Size

Order information

Motherboard Model

description

CPU?Optional

?

OPS110D

Support LGA1151?socket Intel 6^th?and 7^th

i3-i5-i7/Pentium/Celeron CPU

H110/H170?high-speend chipset

??

? ? ? ? ? ? ??
