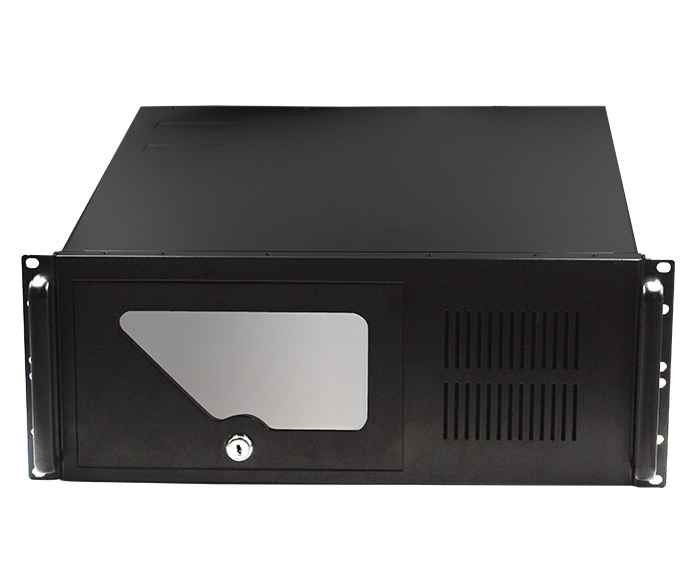

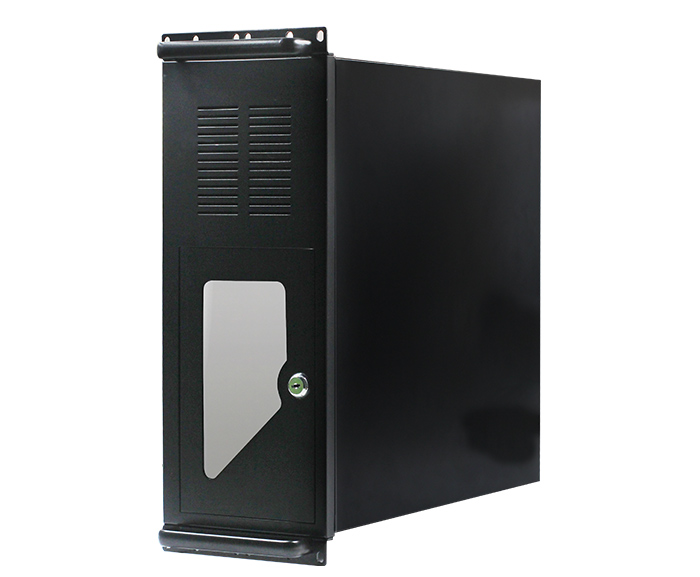

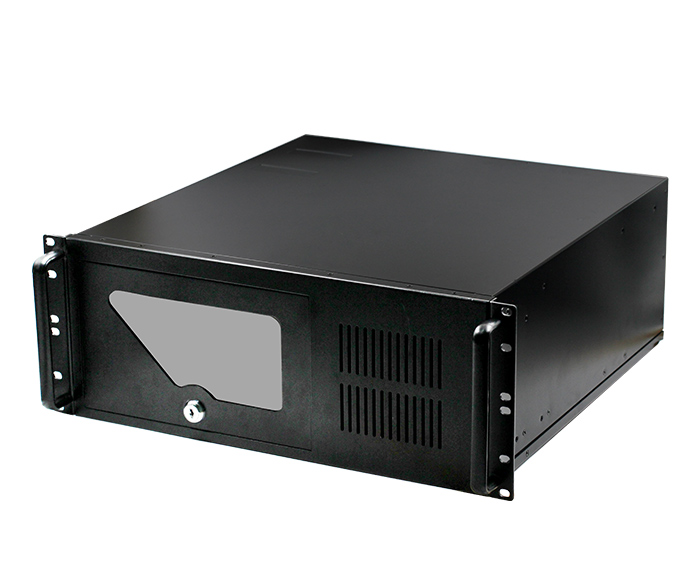

4U Computer（H81-BTC）

Model : 4U Computer（H81-BTC）

Description :
◆support LGA1150 Socket 4th i3-i5-i7/Pentium/Celeron CPU；
◆ H81 high-speed chipset ；
◆ 2*DDR3 Ram socket ，support DDR3L 1600Mhz dualchanel ;
◆ 1*VGA 1*DVI；
◆ 1*PCIE_X16 5*PCIE_X1；
◆ ATX Power supply；
◆ size：482*450*178mm;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆support LGA1150 Socket 4th i3-i5-i7/Pentium/Celeron CPU；

◆ H81 high-speed chipset ；

◆ 2*DDR3 Ram socket ，support DDR3L 1600Mhz dualchanel

◆ 1*VGA 1*DVI；

◆ 1*PCIE_X16 5*PCIE_X1；

◆ ATX Power supply；

◆ size：482*450*178mm

Specifications

Model	4U industrial computer（H81-BTC）
size	482450178mm
material	Advanced flowerless galvanized sheet
CPU	Support LGA1150 socket 4^th?i3-i5-i7/Pentium/Celeron CPU；
Chipset	H81 high-speed chipset
Operate system	Windows7 Windows8.1 Windows10 Linux
Ram socket	2*DDR3 Ram socket ，support DDR3L?1600Mhz?dualchanel
Lan	Onboard 1*RTL 8111H gigabit Lan
Audio	Onboard ?HDA ALC662
Standard Fan	1?12025 fan, optional 2 6025 fans

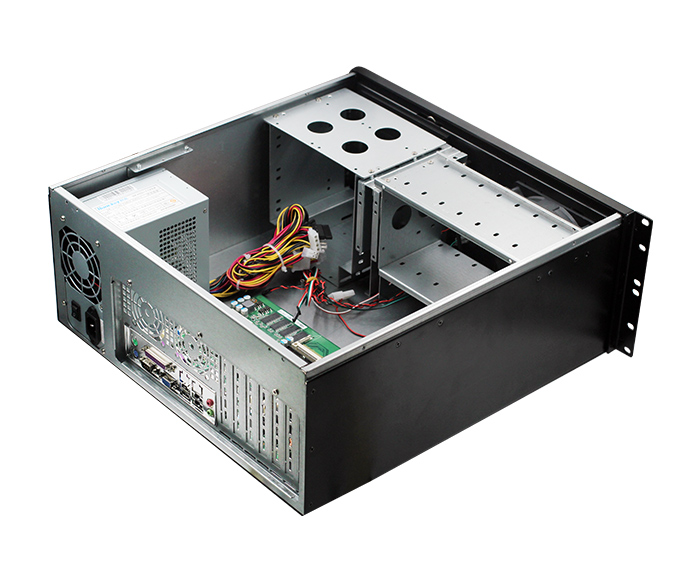

Expansion slot	The chassis supports 7 *full-height PCIE expansion slots
driver	The chassis supports 3*?5.25 optical drives
Hard disk	The chassis supports 8* 3.5-inch hard drive holes
Storage equipment	2SATA3.0，2SATA2.0
Color	Black

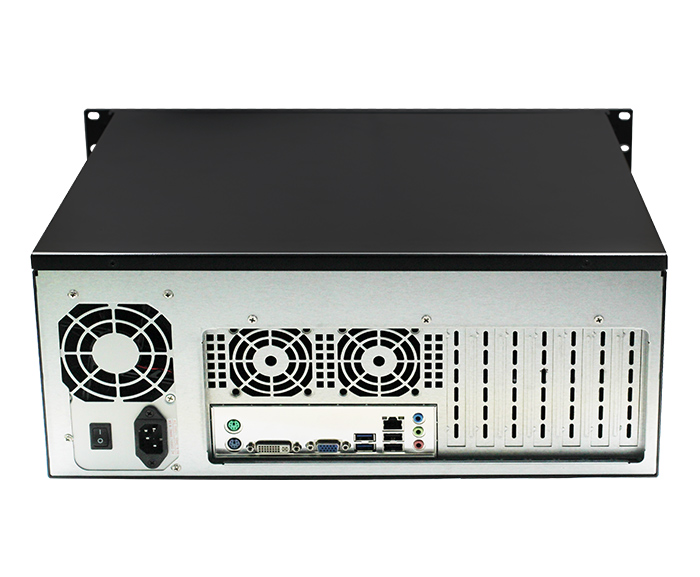

Panel interface	1VGA 1DVI 1LAN,2USB3.0?2USB2.0 1MIC_OUT/LINE_OUT/LINE_IN 1*PS/2
Power supply	Desktop ATX Power supply
Net weight	10KG
Gross weight	12.0KG

? Size

order information

Motherboard

description

CPU?optional

H81-BTC

Main chipset：Intel H81 high-speed chipset

CPU?socket：LGA 1150

Ram type：2*DDR3 Ram socket

CPU?Model：

Intel?4^th?i3-i5-i7/Pentium/Celeron?CPU
