PPC-90C17A

Model : PPC-90C17A

Description :
◆ Intel? Core? 5th Broadwell-U Soc i3/i5/i7 Processor；
◆ 17inch TFT LED display and 5 wires resistive Touch panel；
◆ Front panel protection Rating: IP65；
◆ Support SATA and M-SATA storage；
◆ support wireless 4G/WIFI；
◆ Reserve 2 Group Phoenix Connector for custom function）；
◆ DC12V5A power supply (optional widening voltage module, support 9-36V power supply)；
◆ Sealed and fanless design；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Intel? Core? 5^th Broadwell-U Soc i3/i5/i7 Processor

◆ 17inch TFT LED display and 5 wires resistive Touch panel

◆ Front panel protection Rating: IP65

◆ Support SATA and M-SATA storage

◆ support wireless 4G/WIFI

◆ Reserve 2 Group Phoenix Connector for custom function）

◆ DC12V5A power supply (optional widening voltage module, support 9-36V power supply)

◆ Sealed and fanless design

Specification

?

?

?

Processor

CPU

Intel? Core??5th Broadwell-USoc i3/i5/i7?Processor

Memory

Onboard 2GB\4GB DDR3 1066/1333/1600MHz,Can add 1 slot, maximum expansion of 12GB memory

storage

Onboard SSD16/32/64/128G（optional）

SATAand MSATA，HDD?and SSD（optional）

Internet ?(LAN)

1*RTL8111E RJ45?Gigabit network interface

?

?

?

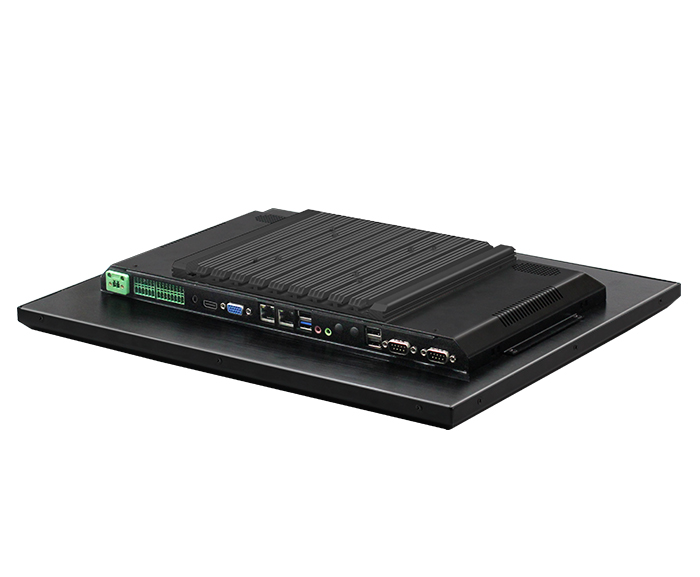

I/O Interface

4*RS-232, 2*RS422/485,2*DB9?Port RS485/422?4*three cable RS-232，

2*USB2.0,2*USB3.0，

1*14BIT GPIO?terminal，

1*LINE OUT 1*MIC，

2*Wifi?antenna Port ，

1*button switch，

1*VGA Maximum resolution support 2048x1536 1*HDMI Maximum resolution support 3200*2000@60HZ

Expansion slot

1* full size Mini-PCIE slot

Watch-Dog timer

0-255 seconds, providing a watchdog routine

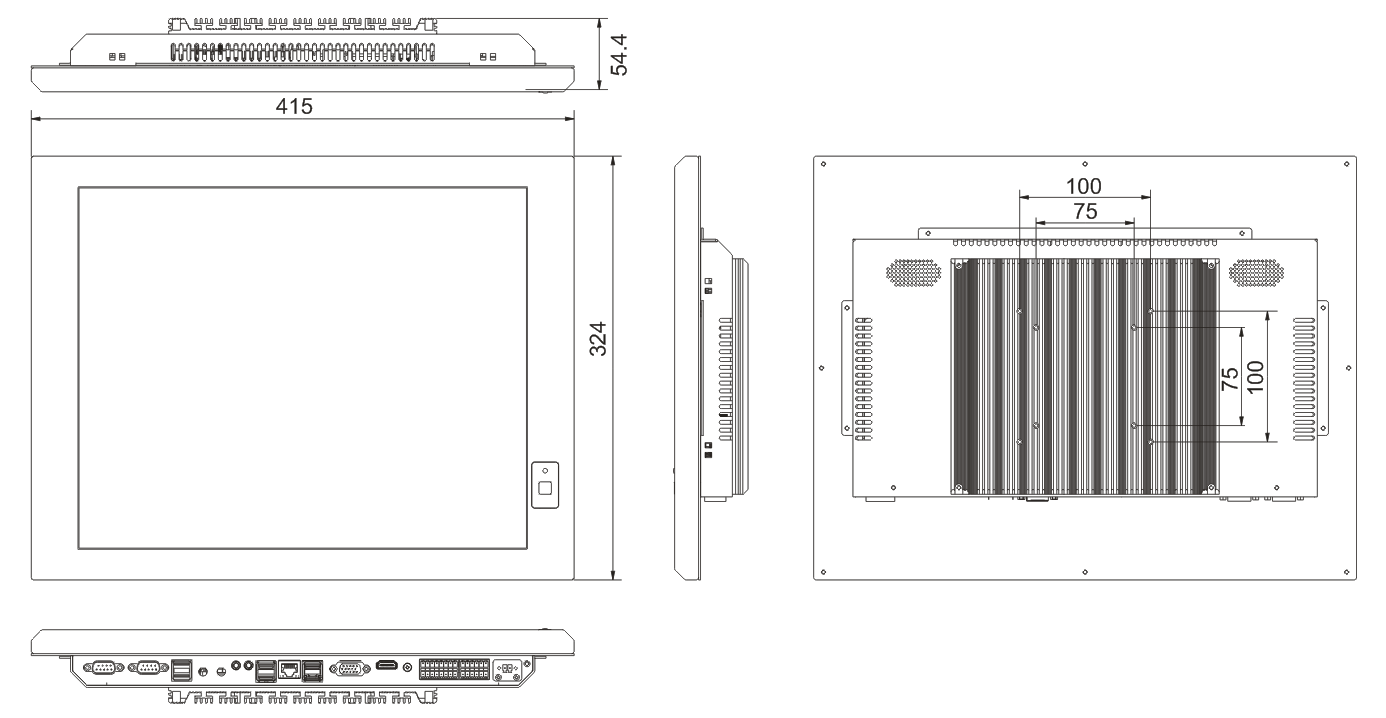

Physical characteristics

size

415*324*54.4

weight

4.56kg

OS?support

Operate system

Support for Windows 7/Windows8/Windows8.1/Windows10/Linux/Android

Power support

Input voltage

Single input DC DC12V power supply +/-5% (optional widened voltage module, support 9-36V power supply)

?

?

LCD?display

Display type

17 inch TFT LED

Max resolution

1280*1024

view

80 (left), 80 (right), 70 (top), 70 (bottom)

Lumens (cd/m2)

350cd/m2

Contrast

400:1

Backlight Life

30,000 hrs (Min.)

?

Touch panel

TYPE

Five-wire resistive touch screen

Light Transmittance

≥85%

Controller Interface

USB interface

Durability(Touch Times)

More than 35 million times

?

?

Environment

Working Temperature

-20°C ~ +60°C

Storage Temperature

-40°C ~ +85°C

Relative humidity

0% ~ 90% relative humidity, no condensation

EMC

CE, FCC Class B, BSMI

CERTIFICATE

CB, CCC, BSMI, UL

Front panel protection

Front panel IP65

Size
