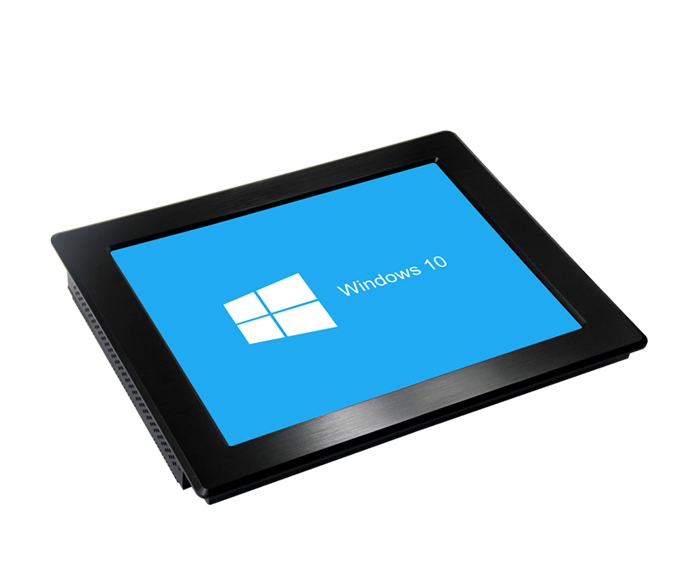

PPC-BT15A

Model : PPC-BT15A

Description :
◆ Onboard Intel Baytrail-D/I/M Processor;

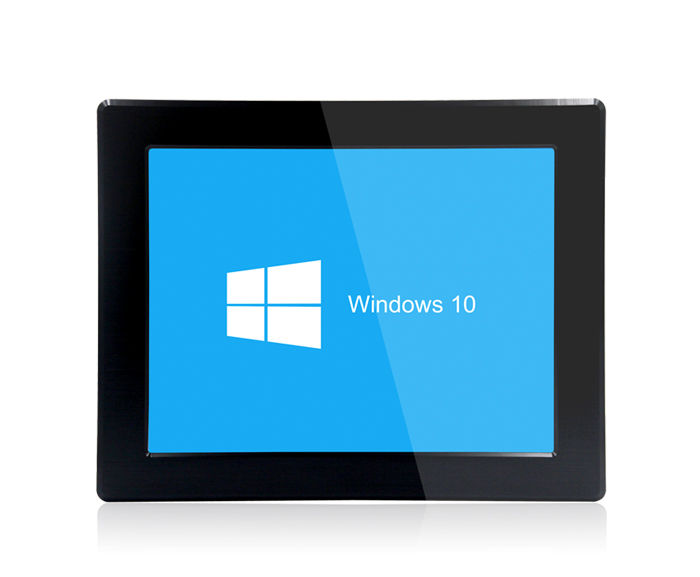

◆ 15inch TFT LED display and 5 wires resistive Touch panel;
◆ Front panel protection Rating: IP65;
◆ Support SATA and Mini SATA;
◆ Support 3G/WIFI by mPCIe;
◆ Reserve 2 Group Phoenix Connector for custom function;
◆ DC12V5A power supply;

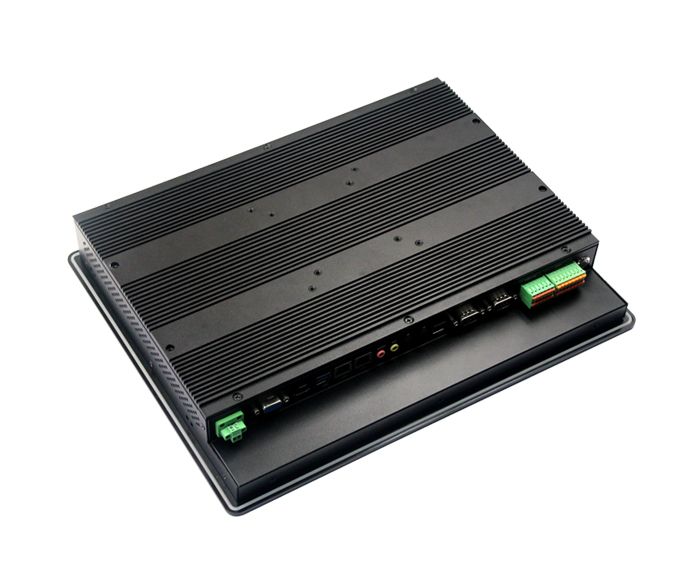

◆ Using fanless design ;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Onboard Intel Baytrail-D/I/M Processor

◆ 15inch TFT LED display and 5 wires resistive Touch panel

◆ Front panel protection Rating: IP65

◆ Support SATA and Mini SATA

◆ Support 3G/WIFI by mPCIe

◆ Reserve 2 Group Phoenix Connector for custom function

◆ DC12V5A power supply

◆ Using fanless design

Specification

? ? ? PROCESSOR	CPU	Onboard Intel Celeron Baytrail-D/I/M?Processor
	RAM	Onboard 2GB/4GB DDR3 1066/1333MHz,1 RAM slot to expand 8GB DDR3 RAM max.
	STORAGE	Onboard SSD16/32/64/128G ?(optional) SATA and MSATA,HDD or SSD (optional)
	NETWORK	2*RTL8111E RJ45 1000M LAN
	? ? ? I/O INTERFACE	5RS-232, 1RS422/485,2DB9 RS-232 3 3pin RS-232 2USB2.0,2USB3.0， 114BIT GPIO Connector， 1LINE OUT 1MIC， 2Wifi Antenna port 1POWER ON/OFF switch 1VGA Maximum resolution 2048x1536?1HDMI Maximum 32002000@60HZ
	EXPANSION BUS	1* full size Mini PCIE slot
	WATCHDOG	0-255 second, Sample code optional
Physical characteristics	Size(mm)	378.6300.659.3
Physical characteristics	Weight(kgs)	6kg
O/S SUPPORT	Operation System	Support Windows 7/Windows8/Windows8.1/Windows10/Linux/Android
POWER SUPPLY	INPUT	Single input DC12V 5A ??+/-5%
	Power Consumption	20W
	Battery Module	Module for management of lithium-ion batteries + battery indicator (optional)
? ? LED DISPLAY	DISPLAY TYPE	15inch TFT LED
	Maximun Resolutions	1024*768
	View	80 (LEFT), 80 (RIGHT), 70 (UP), 70 (DOWN)
	Lumens (cd/m2)	350cd/m2
	Contrast	400:1
	Backlight Life	30,000 hrs (Min.)
? TOUCH PANEL	TYPE	5 Wires Resistive touch panel
	Light Transmittance	≥85%
	Controller Interface	USB port
	Durability(Touch Times)	>3500?million times
? ? ENVIRONMENT	Working Temperature	-20℃ ~ +60℃
	Storage Temperature	-40℃ ~ +85℃
	Relative humidity	0% ~ 90%Relative humidity, none condensation
	EMC	CE, FCC Class B, BSMI
	CERTIFICATE	CB, CCC, BSMI, UL
	Front panel protection	IP65

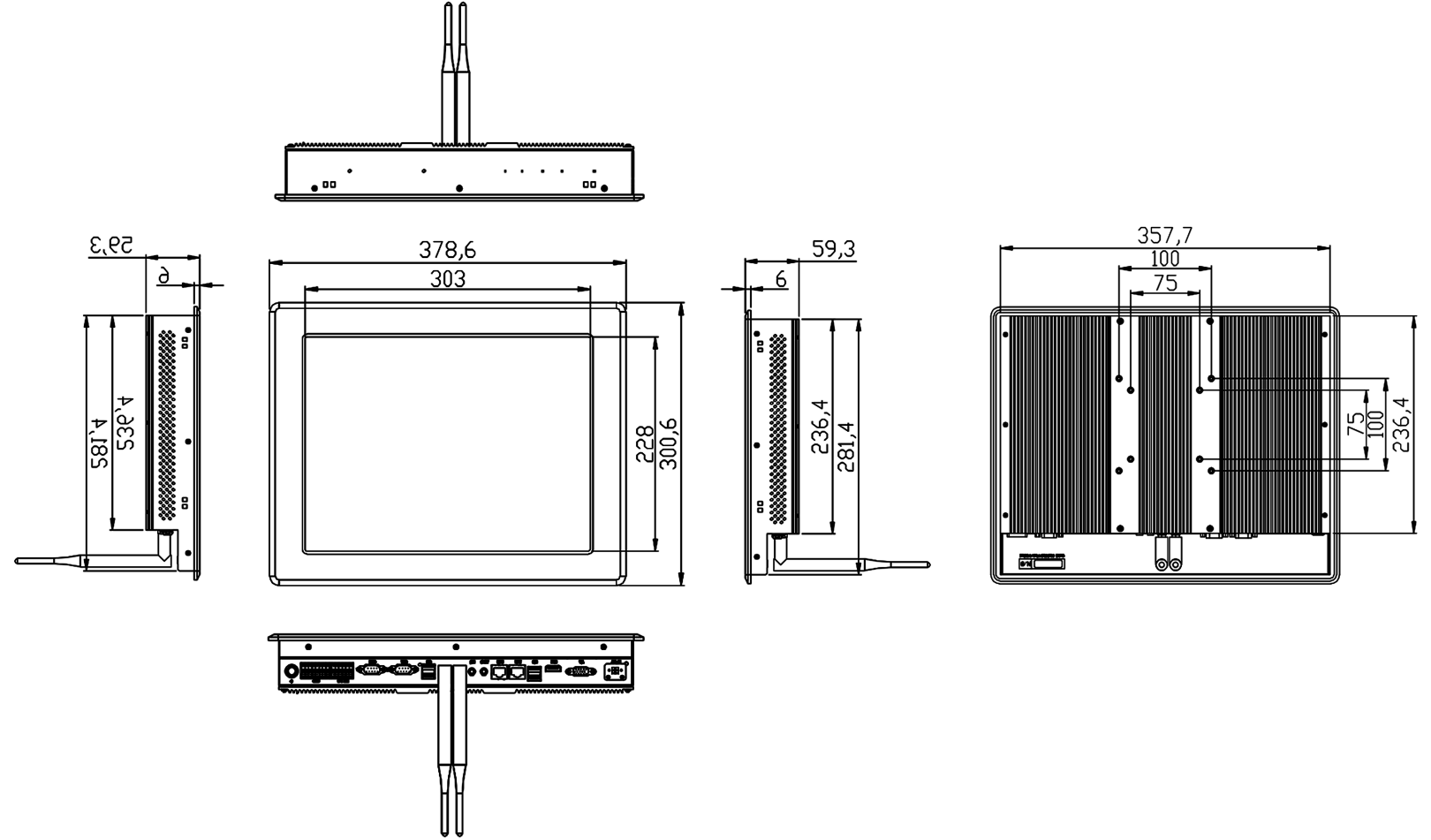

Size

Ordering Information

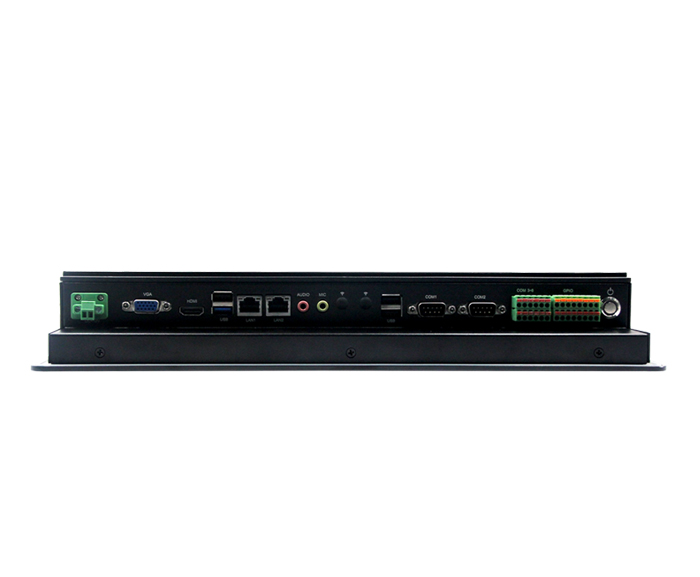

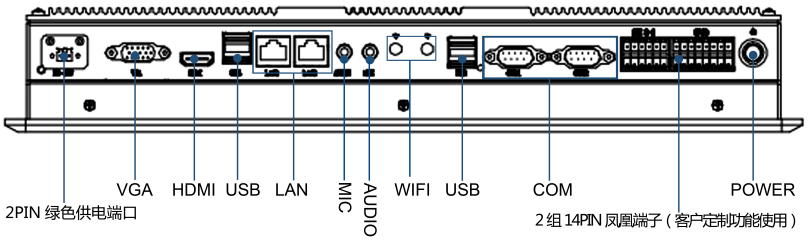

Panel I/O

Model

Specifications

?

PPC-HU15A

With HU803 mainboard?(I3-4010U/I5-4200U/I7-4500U）

PPC-BT15A

With BT203 mainboard（J1900/J1800/N2900/N2806）

PPC-BU15A

With BU90Z3A mainboard (I3-5010U/I5-5200U/I7-5500U)
